SKU: A321981
Our Price: Login to see price
Discontinued - Not orderable


Specifications

General Information
Brand Name
Tripp Lite
Manufacturer
Tripp Lite
Manufacturer Part Number
B118-004-UHD
Product Model
B118-004-UHD
Product Name

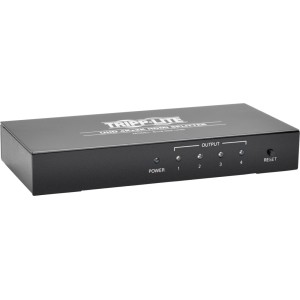

4-Port 4K HDMI Splitter for Ultra-HD (4Kx2K) Video and Audio - 3840x2160
Product Type
Signal Splitter
Interfaces/Ports
HDMI In
Yes
HDMI Out
Yes
Number of HDMI Inputs
1
Number of HDMI Outputs
4
Miscellaneous
Additional information
  • Simultaneously transmit the video and audio from an HDMI source to multiple HDMI monitors
  • Supports Full 3D and video resolutions up to UHD 4Kx2K 3840 x 2160 (24Hz and 30Hz)
  • Supports 36-bit Deep Color (12-bits per channel)
  • Supports DTS-HD, Dolby True HD, Dolby Digital Plus and LPCM 7.1 Channel Surround Sound audio
  • Supports video amplifier bandwidth of 340MHz / 3.4Gbps per channel (10.2Gbps total)
  • HDCP and EDID compatible
  • Plug and play; no software or drivers required
  • Supports Lip Sync pass-through
  • Supports xvYCC and x.vColor
  • Supports the use of DVI sources and displays with the use of an optional DVI to HDMI adapter (sold separately)
  • Supports a maximum distance of 16.4 ft. (5 m) from source to splitter, and 23 ft. (7 m) from splitter to display, for a total of up to 39.4 ft. (12 m)
Power Description
Input Voltage
230 V AC
Warranty
Limited Warranty
1 Year

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Tripp Lite
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Tripp Lite at (773) 869-1234
  • Technical Support: Tripp Lite (773) 869-1234

Package Contents

  • 4-Port 4K HDMI Splitter for Ultra-HD (4Kx2K) Video and Audio - 3840x2160
  • External Power Supply (Input: 100-240V, 50/60Hz, 1.5A Output: 5V, 3A)
  • Owner's Manual
