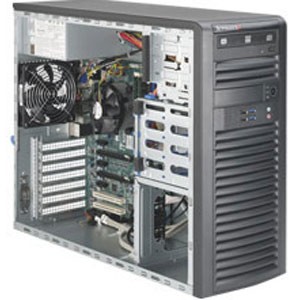

SKU: 850-11743C
  • LGA1151 Xeon E3-1200 v5
  • Max 64GB DDR4 2133MHz ECC (4 DIMMs)
  • 4 x 3.5" SATA bays - Fix - RAID 0, 1, 5, 10
  • Intel i210AT + i219LM Gigabit Ethernet
  • 2x PCIe X16, 3x PCIe X4, 2x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Server Case Form Factor
  • Mid-Tower
  • 16.7' x 7.6" x 20.68" (H x W x D)
Processor
    LGA1151 socket for:
    • Intel Xeon processor E3-1200 v5
    • 6th Generation Intel Core i3/Pentium/Celeron Processors
Chipset
Intel C236 chipset
Bios
128MB SPI Flash EEPROM with AMI BIOS
Type of Memory Supported
288-pin DDR4 2133 MHz ECC un-buffered memory
Maximum Memory Supported
64GB
Number of Memory Slots
4
Slots
  • 2 x PCIe 3.0 x16 (1 x16 or dual x8)
  • 3 x PCIe 3.0 x1
  • 2 x PCI
Rear I/O Ports
  • 2 x USB 3.1 Gen2 ports
  • 2 x USB 3.0 (USB 3.1 Gen1) ports
  • 2 x USB 2.0 ports
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x DVI-D
  • 2 x RJ45 LAN ports
  • 1 x Audio I/O
Audio
Realtek ALC888S 8-channel high definition audio CODEC
Video
Integrated Intel Graphics from processor - DVI, HDMI, DisplayPort
LAN
  • Intel I210-AT Gigabit LAN
  • Intel I219LM Gigabit LAN
SATA / SAS
  • 8 x SATA 6Gb/s
  • 1 x M.2 Socket 3 (for M Key, type 2242/2260/2280 storage devices)
  • RAID 0, 1, 5, 10
SCSI
Not Available
USB Port (s)
    Up to 10 x USB ports:
    • 2 x USB 3.0 (USB 3.1 Gen1) on Front Panel
    • 2 x USB 2.0 on Front Pnael
    • 2 x USB 3.1 Gen2 port on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
    • 2 x USB 2.0 on Back Panel I/O
Floppy Disk Drive
Not Included
Optical Drive(s)
Not Included
Ext. Drive Bays
2 x 5.25"
Int. Drive Bays
4 x 3.5"
Power
500W AC power supply w/ PFC
Motherboard Manufacturer
Supermicro X11SAE

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
