Supermicro 5019S-WR LGA1151 XEON C236 1U w/ 500W PSU - (Discontinued)

Support: (408) 503-8000

Supermicro 5019S-WR LGA1151 XEON C236 1U w/ 500W PSU - (Discontinued)

SKU:

850-11777

1x LGA1151 E3-1200 v5 series
Max 64GB DDR4 2133MHz ECC (4 DIMMs)
4 x 3.5" SATA bays - Hot Swap - RAID 0/1/5/10 - C236
Intel i210-AT Gigabit Ethernet controller
Integrated IPMI 2.0 with KVM and Dedicated LAN

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Asus Prime RTX 5070 TI 16GB GDDR7 OC PCIe 5.0 Video Card

: Gigabyte B850 AORUS ELITE WIFI7 AMD B850 AM5 ATX Motherboard

: WD Red SN700 PCIe 3.0 x4 NVMe M.2 2280 SSD - 2TB

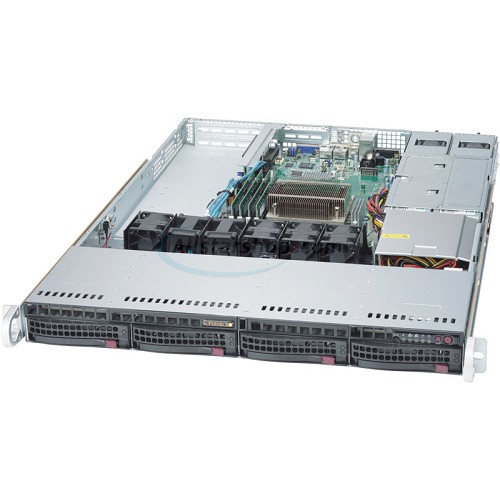

Built to deliver long lifespan performance for the in embedded, industrial, and security applications, Supermicro uni-processor 1U rack servers 5019S-WR and the Intel Xeon E3-1200 v5 family processors enable the best performance and efficiency available, with the highest levels of quality and reliability.

Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
Intel C236 chipset

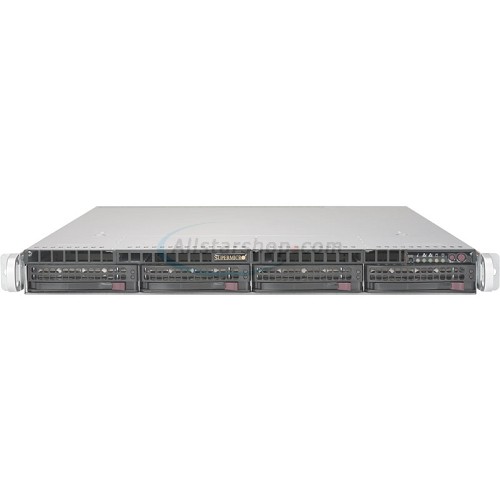

4x 3.5" hot-swap drive bays
Up to 64GB ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots
2x PCI-E 3.0 x8, 1x PCI-E 3.0 x4 (x8) AOC slot
2x GbE ports with Intel i210-AT, 1x dedicated IPMI port
500W Redundant Platinum Level power supplies

Description

Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
Intel C236 chipset
4x 3.5" hot-swap drive bays
Up to 64GB ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots
2x PCI-E 3.0 x8, 1x PCI-E 3.0 x4 (x8) AOC slot
2x GbE ports with Intel i210-AT, 1x dedicated IPMI port
500W Redundant Platinum Level power supplies

Specifications

Server Case Form Factor

1U
17.2" x 25.6" x 1.7" (W x D x H)

Processor

Intel Xeon processor E3-1200 v5
6th Generation Intel Core i3 Processors

Chipset

Intel C236 chipset

Bios

AMI BIOS

Type of Memory Supported

288-pin DDR4 2133 MHz ECC un-buffered memory

Maximum Memory Supported

64GB

Number of Memory Slots

Slots

2 x PCIe X8
1 x PCIe X4

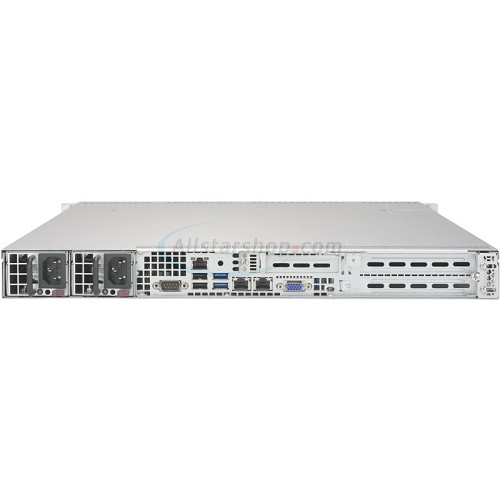

Rear I/O Ports

2 x USB 3.0
2 x USB 2.0
1 x Serial port
2 x RJ45 LAN ports
1 x RJ45 IPMI LAN port

Video

ASPEED AST2400 BMC

LAN

2 x I210-AT Gigabit Ethernet LAN ports
1 x RJ45 IPMI LAN port

SATA / SAS

4 x SATA 6Gb/s
1 x M.2 Socket 3 (for M Key, type 2260/2280/22110 storage devices)
RAID 0, 1, 5, 10 support

USB Port (s)

2 x USB 3.0
2 x USB 2.0

Optical Drive(s)

not included

Ext. Drive Bays

4 x 3.5" hot-swap drive bays

Power

500W high-efficiency (94+%) power supply w/ PMBus

Motherboard Manufacturer

Supermicro X11SSW-F

Manageability

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.
