SKU: 850-11780
  • 1x LGA1151 Xeon E3-1200 V5
  • Max 64GB DDR4 2133MHz ECC (4 DIMMs)
  • 4x 3.5" SATA bays - Hot Swap - RAID 0/1/5/10 - C236
  • Intel i210-AT Gigabit Ethernet controller
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Server Case Form Factor
  • 1U
  • 17.2" x 19.8" x 1.7" (W x D x H)
Processor
    LGA1151 socket for:
    • Intel Xeon processor E3-1200 v5
Chipset
Intel C236 chipset
Bios
AMI BIOS
Type of Memory Supported
288-pin DDR4 2133 MHz ECC un-buffered memory
Maximum Memory Supported
64GB
Number of Memory Slots
4
Slots
1 x PCIe 3.0 x16 (max. x8)

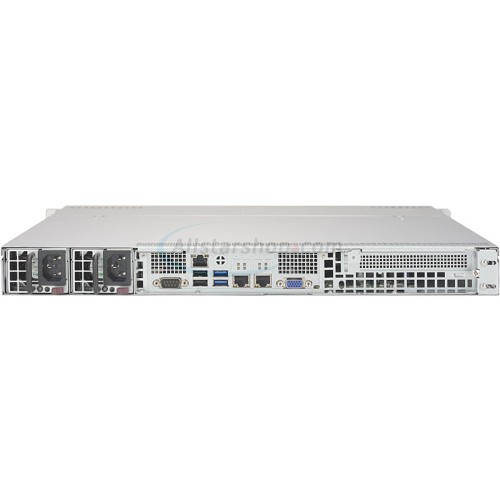

Rear I/O Ports
  • 2 x USB 3.0 (USB 3.1 Gen1)
  • 2 x USB 2.0
  • 1 x Serial port
  • 1 x VGA
  • 2 x RJ45 LAN ports
  • 1 x RJ45 Dedicated IPMI LAN port
Video
ASPEED AST2400 BMC - VGA for KVM
LAN
  • 2 x i210-AT Gigabit Ethernet LAN
  • 1 x RJ45 Dedicated IPMI LAN port
SATA / SAS
  • 4 x SATA 6Gb/s
  • 1 x M.2 PCIe 3.0 x2 for 2280 storage devices
  • RAID 0, 1, 5, 10 support
USB Port (s)
  • 2 x USB 3.0 (USB 3.1 Gen1)
  • 2 x USB 2.0
Optical Drive(s)
not included
Ext. Drive Bays
4 x 3.5" hot-swap drive bays
Power
400W (1+1) Redundant Platinum level power supply with PMBus and I2C
Motherboard Manufacturer
Supermicro X11SSH-F
Manageability
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
