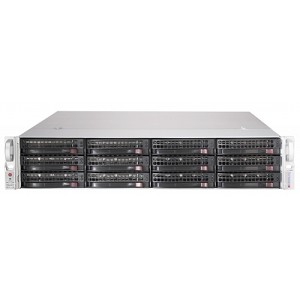

SKU: 850-11708E
  • 2x LGA2011-3 E5-2600 v4 / v3 series
  • Max 1.5TB / 24 Dimm DDR4 2133/1866/1600/1333MHz ECC Registered
  • 12x 3.5" SAS/SATA bays - Hot Swap - RAID 0, 1, 5, 6, 10, 50 and 60 - LSI 3108
  • Intel X540 10GBase-T Ethernet controller
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Server Case Form Factor
  • 2U
  • 17.2" x 3.5" x 25.6" (W x H x D)
Processor
  • Intel Xeon processor E5-2600 v4
  • Intel Xeon processor E5-2600 v3
  • Dual (Not Included)
Chipset
Intel C612
Bios
128Mb SPI Flash EEPROM with AMI BIOS
Type of Memory Supported
    288-pin DDR4 2133/1866/1600MHz ECC LRDIMM
      or
    288-pin DDR4 2133/1866/1600MHz ECC RDIMM
Maximum Memory Supported
    ECC LRDIMM: 1.5TB
      or
    ECC RDIMM: 768GB
Number of Memory Slots
24
Slots
  • 2 x PCI-E 3.0 x16
  • 3 x PCI-E 3.0 x8
  • Slot 3 & 4 occupied by controller and JBOD Expansion Port
Rear I/O Ports
  • 2 x USB 3.0
  • 2 x USB 2.0
  • 1 x Serial port
  • 1 x 15-pin VGA
  • 4 x RJ45 10GBase-T ports
  • 1 x RJ45 Dedicated IPMI LAN port
Audio
Not Available
Video
ASPEED AST2400 BMC
LAN
Intel X540 Quad Port 10GBase-T
SATA / SAS
8 x SAS 12GB/s from AOC-S3108L-H8iR
USB Port (s)
  • 2 x USB 3.0 on Back Panel I/O
  • 2 x USB 2.0 on Back Panel I/O
  • 1 x USB TypeA
Optical Drive(s)
Not Included
Ext. Drive Bays
12 x 3.5" Hot-swap SAS3 HDD bays
Int. Drive Bays
Internal Drive Bracket suppports 2x 2.5" devices (Not Included)
Power
920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
Motherboard Manufacturer
Super X10DRi-T4+
Manageability
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • 1 x Super X10DRi-T4+ Motherboard
  • 1 x CSE-826BE1C-R920LPB
  • 1 x BPN-SAS3-826EL1 SAS3 12Gb/s Single Expander backplane
  • 4 x CBL-SAST-0532 Mini-SAS HD to Mini-SAS HD cable
  • 1 x SNK-P0048P
  • 1 x SNK-P0048AP4
  • 2 x PWS-920P-SQ 1U Redundant PWS
  • 1 x AOC-S3108L-H8IR-O-P
  • 1 x AOM-SAS3-8I8E-LP 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket
