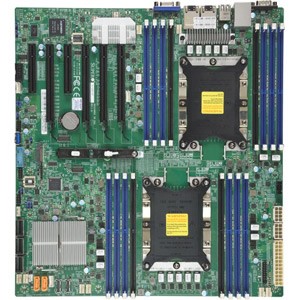

SKU: 800-11708C
  • Max 4TB / 16 DIMM DDR4 2666/2400/2133MHz ECC Registered
  • 14x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
  • Up to 5x USB 3.0, 4x USB 2.0
  • 4x PCIe X16, 2x PCIe X8
Our Price: Login to see price
Availability: Usually ships within 1 week


Specifications

CPU Support
  • 1st and 2nd Gen Intel Xeon processor Scalable family with maximum TDP of 205W
  • Socket P
Number of Processor (s)
Dual (Not Included)
Chipset
Intel C621
System Bios
AMI UEFI
Number of Memory Slots
16
Type of Memory Supported
DDR4-2666/2400/2133MHz ECC RDIMM/LRDIMM
Maximum RAM
  • 3DS LRDIMM: 4TB
  • LRDIMM: 4TB
Back Panel I/O
  • 2 x USB 3.0 ports
  • 2 x USB 2.0 ports
  • 1 x VGA
  • 1 x Serial port
  • 2 x RJ45 LAN
  • 1 x RJ45 Dedicated IPMI LAN port
Number of PCI/PCI Express Slots
  • 4 x PCIe 3.0 x16
  • 2 x PCIe 3.0 x8
Integrated SATA/SAS
14x SATA 6Gb/s
  • 8x SATA 3.0 ports support by Intel PCH (ISATA 0-3, I-SATA 4-7)
  • 4x S-SATA 3.0 ports supported by Intel SCU
  • 2x SATA 3.0 ports with power-pin built-in (S-SATA4/S-SATA5)
# of U.2 Ports
No
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
# of M.2 Ports
1 x M.2 Socket 3, with M key, type 2260/2280/22110 storage devices support PCIE 3.0 x4 mode
# of SATA Express Ports
No
Integrated Audio
No
Integrated Video
Aspeed AST2500
Integrated LAN
  • 2x Gigabit LAN from C621/x722
  • 1x IPMI-dedicated LAN supported by AST2500 BMC
    • IPMI
  • ASPEED AST2500
  • IPMI 2.0, KVM with dedicated LAN port
    • USB
    • 2 x USB 3.0 on Back Panel I/O
    • 2 x USB 3.0 via header
    • 1 x USB 3.0 Type-A via header
    • 2 x USB 2.0 on Back Panel I/O
    • 2 x USB 2.0 via header
    IEEE 1394
    No
    Serial/Parallel Ports
    • 1 x Serial port on Back Panel I/O
    • 1 x Serial port via header
    PS/2 Ports
    No
    Form Factor
    eATX
    Dimensions
    12" x 13"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

    • X11DPi-N motherboard
    • I/O Shield
    • 2 x SATA cable
