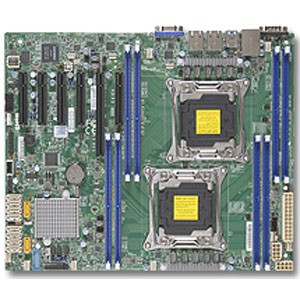

SKU: 800-11758
  • Integrated ASPEED AST2400 Graphics Controller - VGA
  • Max 1TB / 8 Dimm DDR4 ECC 3DS LRDIMM
  • Up to 10 x SATA 6Gb/s / RAID 0, 1, 5, 10
  • 1 x PCIe x16, 3 x PCIe 3.0 x8, 1 x PCIe 3.0 x8(x4), 1 x PCIe x8(x4)
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
  • Intel Xeon processor E5-2600 v4
  • Intel Xeon processor E5-2600 v3
Number of Processor (s)
Dual (Not Included)
Chipset
Intel C612
System Bios
128Mb SPI Flash EEPROM with AMI BIOS
Video card slot
PCIe 3.0 x16
Number of Memory Slots
8
Type of Memory Supported
    288-pin DDR4 ECC 3DS LRDIMM
      or
    288-pin DDR4 ECC Registered RDIMM / LRDIMM
Maximum RAM
    DDR4 ECC 3DS LRDIMM: 1TB
      or
    DDR4 ECC RDIMM/LRDIMM: 512GB
Back Panel I/O
  • 2 x USB 3.0
  • 2 x USB 2.0
  • 1 x Serial port
  • 1 x 15-pin VGA
  • 2 x RJ45 LAN ports
  • 1 x RJ45 Dedicated IPMI LAN
Number of PCI/PCI-Express Slots
  • 3 x PCIe 3.0 x8
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x4 (in x8)
  • 1 x PCIe 2.0 x4 (in x8)
Integrated SATA/SAS
10 x SATA 6Gb/s
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Not Available
Integrated Video
ASPEED AST2400 BMC
Integrated LAN
  • Intel i210 Dual Port Gigabit Ethernet
  • Realtek RTL8211E PHY (dedicated IPMI)
IPMI
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
USB
    Up to 9 x USB
    • 2 x USB 3.0 on Back Panel I/O
    • 2 x USB 3.0 ports via headers
    • 2 x USB 2.0 ports on Back Panel I/O
    • 2 x USB 2.0 ports via headers
    • 1 x Type A USB 2.0
IEEE 1394
Not Available
Serial/Parallel Ports
  • 1 x Serial port on Back Panel I/O
  • 1 x Serial port via header
PS/2 Ports
Not Available
Form Factor
ATX
Dimensions
12" x 10"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
