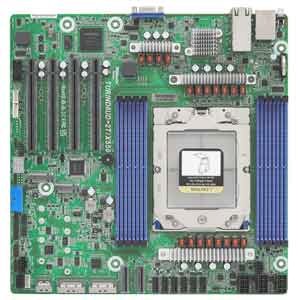

ASRock TURIND8UD-2T/X550 AMD SP5 Deep Micro-ATX Server Board

Support: (909) 590-8308

ASRock TURIND8UD-2T/X550 AMD SP5 Deep Micro-ATX Server Board

SKU:	800-26590A

Integrated Graphics - VGA
Max 2TB / 8 DIMM DDR5-6400 ECC RDIMM
5x MCIO, 2x M.2
Up to 4x USB 3.2 Gen1
4x PCIe 5.0 x16

Our Price:	Login to see price
Availability:	Temporarily out of stock

Accessories

: AMD EPYC 9015 8-Core 3.95GHz 64MB Cache CPU (Tray)

: AMD EPYC 9115 16-Core 2.6GHz 64MB Cache CPU (Tray)

: AMD EPYC 9135 16-Core 3.65GHz 64MB Cache CPU

The ASRock Rack TURIND8UD-2T/X550 is a compact Deep-Micro ATX SP5 server board for AMD EPYC 9005/9004, focused on dense PCIe 5.0 expansion and integrated 10GbE with IPMI management. It supports AMD EPYC 9005 and 9004 series processors, including models with AMD 3D V-Cache and 97x4 series. It is designed for CPUs up to 400 W TDP, targeting high-core-count, compute- and memory-intensive workloads in a single-socket configuration.

Description

Specifications

CPU Support

AMD EPYC 9005/9004 & 97x4 series processors

Number of Processor (s)

Single

Chipset

SoC

Number of Memory Slots

Type of Memory Supported

DDR5 ECC RDIMM

Maximum RAM

1TB

Back Panel I/O

2 x USB 3.2 Gen1 Type-A ports
1 x VGA
2 x RJ45 10 GbE
1 x RJ45 Dedicated IPMI

Number of PCI/PCI Express Slots

4 x PCIe 5.0 x16

Integrated SATA/SAS

2 x MCIO (PCIe5.0 x8)
2 x MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s)
1 x MCIO (PCIe5.0 x4)

# of M.2 Ports

2 x M.2 socket, with M key, type 2230/2242/2260/2280 support PCIe 5.0 x4 mode

Integrated Video

ASPEED AST2600

Integrated LAN

Intel X550-AT2 10GbE

IPMI

ASPEED AST2600

USB

2 x USB 3.2 Gen1 on Back Panel I/O
2 x USB 3.2 Gen1 via header

Serial/Parallel Ports

1 x Serial port via header

Form Factor

Deep Micro-ATX

Dimensions

10.4" x 10.5"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asrock
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
Technical Support: Asrock (909) 590-8308
