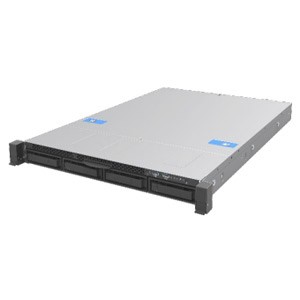

SKU: 850-28065A
  • 2x 3rd Gen Intel Xeon Scalable Processors
  • Max 4TB DDR4 3200MHz ECC RDIMM (16 DIMMs)
  • 4x 3.5" SATA bays - hot swap
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
Our Price: Login to see price
Availability: Usually ships same day


Specifications

Server Case Form Factor
1U
Processor
  • 3rd Gen Intel Xeon Scalable processors
  • Dual (Not Included)
Chipset
Intel C621A
Bios
UEFI BIOS
Type of Memory Supported
DDR4-3200 3DS-RDIMM/3DS-LRDIMM
Maximum Memory Supported
4TB
Number of Memory Slots
16
Slots
  • M20NTP1URISER1 PCIe x16
  • M20NTP1URISER2 PCIe x16
Front I/O Ports
  • 2 x USB 3.0 Type-A ports
Rear I/O Ports
  • 2 x USB 3.0 Type-A ports
  • 1 x VGA
  • 1 x Serial port
  • 2 x RJ45 LAN
  • 1 x RJ45 Remote Management Port
Video
ASpeed AST2500
LAN
  • 2 x RJ45 Gigabit LAN by Intel I210-AT
  • 1 x RJ45 Remote Management Port
Ext. Drive Bays
4 x 3.5" SATA
Int. Drive Bays
1 x M.2 slot 2242/2280/22110 NVMe SSD
Power
750W Power supply AXXBFP750SLPS
Motherboard Manufacturer
Intel Server Board M20NTP2SB
Manageability
ASpeed AST2500

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: Intel
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Intel at (800) 538-3373
  • Technical Support: Intel (800) 538-3373

Package Contents

  • 1 x 1U Chassis
  • 1 x Intel Server Board M20NTP2SB
  • 1 x 750W Power supply AXXBFP750SLPS
  • 1 x Power distribution board
  • 1 x PCIe riser card (Riser Slot 1) M20NTP1URISER1
  • 1 x PCIe riser card (Riser Slot 2) M20NTP1URISER2
  • 6 x System fans MYP1UFAN
  • 1 x Air duct
  • 4 x Drive carrier assemblies Drive Tray + Drive Blank FXX35HSCAR3
  • 1 x 4x3.5” SATA/SAS/NVMe backplane AXXHSBP1304
  • 1 x Multi-port MiniSAS HD to 7-pin (x4 leads) SATA cable
  • 1 x 570mm I2C backplane communication cable
  • 1 x Front USB cable
  • 1 x Front control panel cable
  • 2 x Processor socket covers
  • 2 x 1U Processor heat sinks CYP1UHSSTD
  • 2 x Processor carrier clips ICXPHMMOQ2
  • 14 x Memory slot DIMM blanks TNPDMMBLNK
  • 1 x M.2 SSD retention clip
  • 4 x Mounting screws for OCP add-in option

Compatible Accessories

Power Supplies

Intel AXXBFP750SLPS 750W AC Slimline 80+ Platinum power supply module
Manufacturer: Intel
Mfg P/N: AXXBFP750SLPS
Availability: Temporarily out of stock
