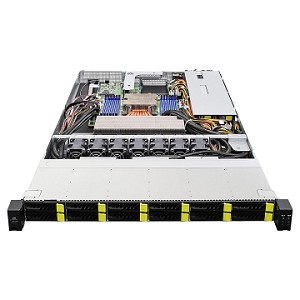

SKU: 850-26504
  • 1x SP5 AMD EPYC 9005/9004 Series
  • Max 1.5TB DDR5 6400MHz ECC Reg (12 DIMMs)
  • 12x 2.5" bays - Hot Swap
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
Our Price: Login to see price
Discontinued


Specifications

Server Case Form Factor
  • 1U
  • 30.6" x 17.2" x 1.7"
Processor
  • Single
  • AMD EPYC 9005/9004 & 97x4 series processors
Chipset
SoC
Type of Memory Supported
DDR5-5600/6400 ECC RDIMM
Maximum Memory Supported
  • RDIMM: 1.5TB
  • 3DS RDIMM: 3TB
Number of Memory Slots
12
Slots
1 x FHHL PCIe 5.0 x16
Rear I/O Ports
  • 2 x USB3.2 Gen1
  • 1 x VGA
  • 1 x Serial port
Video
ASPEED AST2600
SATA / SAS
2 x M.2 socket, with M key, type 2260/2280/22110 support PCIe 5.0 x4 & SATA mode
USB Port (s)
  • 2 x USB 3.2 Gen1 ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 port on Front Panel
Ext. Drive Bays
12 x 2.5" NVMe
Power
1 + 1 Redundant 1000W 80-PLUS Platinum Power Supply
Motherboard Manufacturer
ASRock TURIND12M3-NL/500W/1U12E
Manageability
ASPEED AST2600

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Asrock
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Asrock at (909) 590-8308
  • Technical Support: Asrock (909) 590-8308
