SKU: 541-19509
  • Stream single video source to 8 separate VGA monitors
  • 300MHz Bandwidth Superior video quality
  • Amplifies signals increasing transmission distance up to 215 ft
  • Supports up to 8 VGA monitors
  • Hot-Plug capability, Hot-Swappable, Plug-n-Play
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

Warranty
Standard Warranty
3 Year
General Information
Manufacturer
IOGEAR, Inc
Manufacturer Part Number
GVS78
Brand Name
IOGEAR
Product Model
GVS78
Product Type
VGA Splitter
Technical Information
Number of Computers
1
Number of Monitors
8
Graphics Modes
  • VGA
  • SVGA
  • XVGA
  • USXGA
  • Graphics Resolution
    1920 x 1440 @ 60 Hz Maximum
    Video Bandwidth
    300 MHz
    Operating Range
    215 ft
    Interfaces/Ports
    Interfaces/Ports

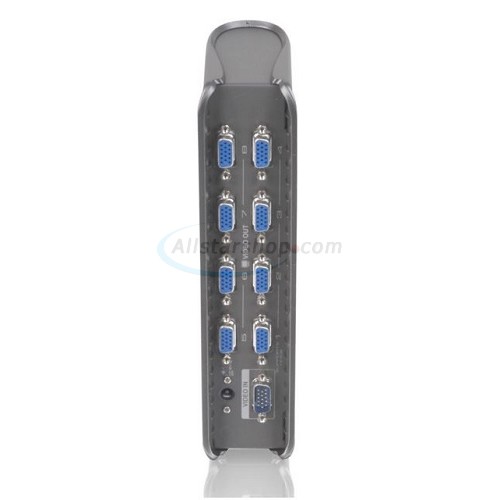

  • 1 x 15-pin HD-15 Male Video In
  • 8 x 15-pin HD-15 Female Video Out
  • Power Description
    Input Voltage
    9 V DC
    Power Consumption
    3.94 W Maximum
    Environmental Conditions
    Temperature
  • 32°F (0°C) to 122°F (50°C) Operating
  • -4°F (-20°C) to 140°F (60°C) Storage
  • Humidity
    0 to 80% Non-condensing Relative Humidity
    Physical Characteristics
    Dimensions
    2" Height x 8.50" Width x 3.75" Depth
    Weight (Approximate)
    1 lb
    Miscellaneous
    Green Compliance
    Yes
    Green Compliance Certificate/Authority
  • RoHS
  • WEEE
  • The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: 1 year
    • Warranty Provider: IOGEAR
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact IOGEAR at 949-428-1111
    • Technical Support: IOGEAR 949-428-1111

    Package Contents

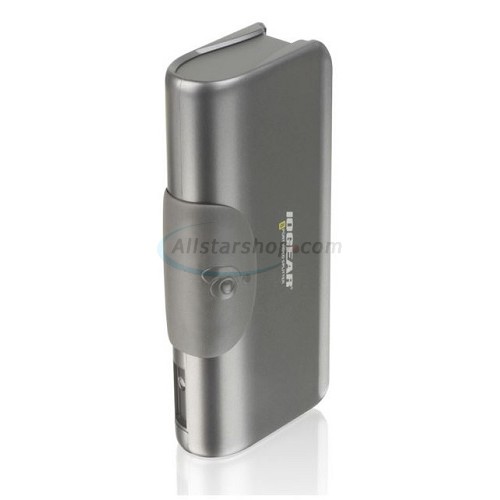

    • GVS78 Video Splitter
    • 1 x Power Adapter
    • 1 x Quick Start Guide
    • 1 x Warranty Card
