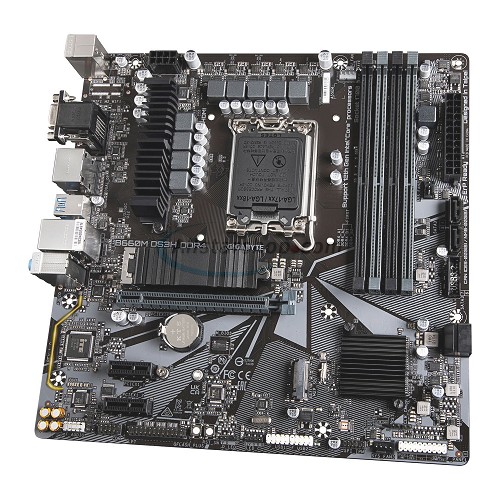

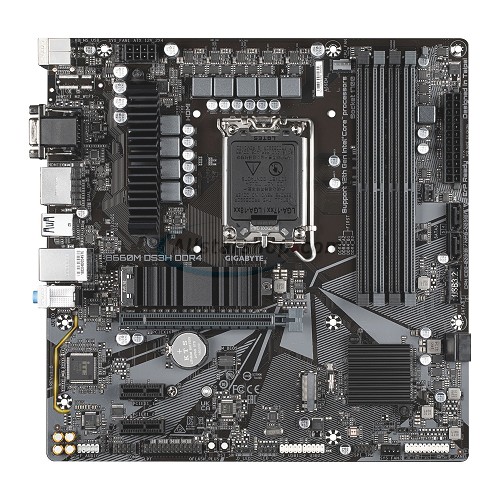

Gigabyte B660M DS3H DDR4 B660 LGA1700 mATX Motherboard

Gigabyte B660M DS3H DDR4 B660 LGA1700 mATX Motherboard - (Discontinued)

Support: (626) 854-9338

Gigabyte B660M DS3H DDR4 B660 LGA1700 mATX Motherboard - (Discontinued)

SKU:	800-58042F

Integrated Intel Graphics - HDMI / 2x DisplayPort / VGA
Max 128GB / 4x DDR4 DIMM / Up to 5333(O.C.)
4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
1x USB 3.2 G2 (1x USB-C), 5x USB 3.2 G1, 6x USB 2.0
1x PCIe 4.0 x16, 2x PCIe x1

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Intel Core i5-12400 6-Core LGA1700 w/18MB cache CPU (BOX)

: Intel Core i9-12900 16-Core LGA1700 w/30MB cache CPU (BOX)

: Kingston 16GB DDR4-3200 CL22 288-pin DIMM

Specifications

CPU Support

LGA1700 socket for 12th Generation Intel Core i9 / i7/ i5 / i3 Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel B660 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0 x16

Number of Memory Slots

Type of Memory Supported

DDR4-5333(O.C.)/ 5133(O.C.) / 5000(O.C.) / 4933(O.C.) 4800(O.C) / 4700(O.C) / 4600(O.C) / 4500(O.C) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory

Maximum RAM

128GB

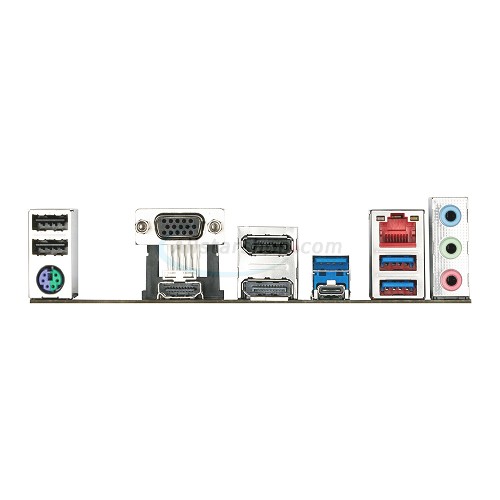

Back Panel I/O

1 x PS/2 Keyboard/Mouse
1 x USB 3.2 Gen2 Type-C port
3 x USB 3.2 Gen1 ports
2 x USB 2.0 ports
2 x DisplayPort
1 x HDMI
1 x VGA
1 x RJ-45 LAN
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCIe 4.0 x16
2 x PCIe 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

2 x M.2 socket, with M key, type 2260/2280 support PCIe 4.0 x4

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Realtek 2.5Gb Ethernet

USB

1 x USB 3.2 Gen2 Type-C port on Back Panel I/O

3 x USB 3.2 Gen1 ports on Back Panel I/O

2 x USB 3.2 Gen1 ports via header

2 x USB 2.0 ports on Back Panel I/O

4 x USB 2.0 ports via headers

Serial/Parallel Ports

1 x Serial port via header
1 x Parallel port via header

PS/2 Ports

1 x PS/2 Keyboard/Mouse

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Gigabyte
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Gigabyte at (626) 854-9338 Or visit Gigabyte customer service online.
Technical Support: Gigabyte (626) 854-9338 or visit Gigabyte technical support online.
