SKU: 800-51159F
  • Integrated Intel Graphics - HDMI / USB-C (DisplayPort)
  • Max 128GB / 4x DDR4 DIMM / Up to 5333(O.C.)
  • 4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
  • 2x USB 3.2 G2 (2x USB-C), 6x USB 3.2 G1, 8x USB 2.0
  • 1x PCIe 5.0 x16, 1x PCIe 3.0 x16, 1x PCIe x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
LGA1700 socket for 12th Generation Intel Core i9 / i7/ i5 / i3 Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel B660 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4-5333(O.C.) / 5000(O.C.) / 4800(O.C) / 4700(O.C) / 4600(O.C) / 4500(O.C) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
Maximum RAM
128GB

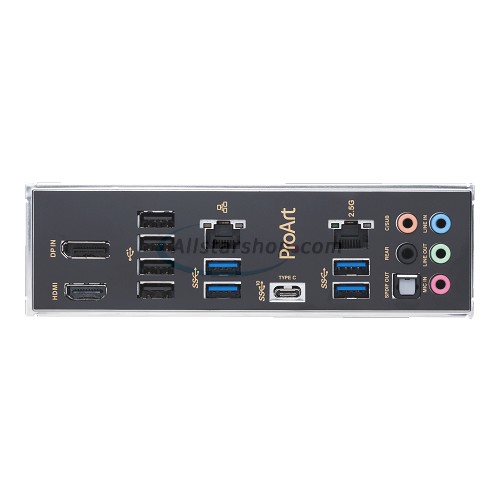

Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port (shared with DisplayPort graphic output)
  • 4 x USB 3.2 Gen1 Type-A ports
  • 4 x USB 2.0 ports
  • 1 x DisplayPort (Input only)
  • 1 x HDMI
  • 2 x RJ-45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 5.0/4.0/3.0 x16
  • 1 x PCIe 3.0 x16 (max x4)
  • 1 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 2 x M.2 socket, with M key, type 2242/2260/2280/22110 support PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 3.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
  • Realtek 2.5Gb Ethernet
  • Intel Gigabit Ethernet
USB
  • 1 x USB 3.2 Gen 2x2 Type-C port via header
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 4 x USB 2.0 ports on Back Panel I/O
  • 4 x USB 2.0 ports via headers
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

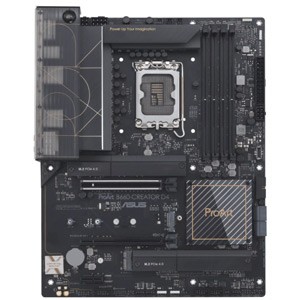

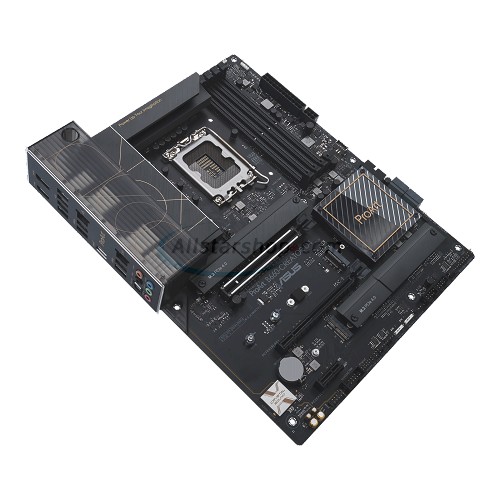

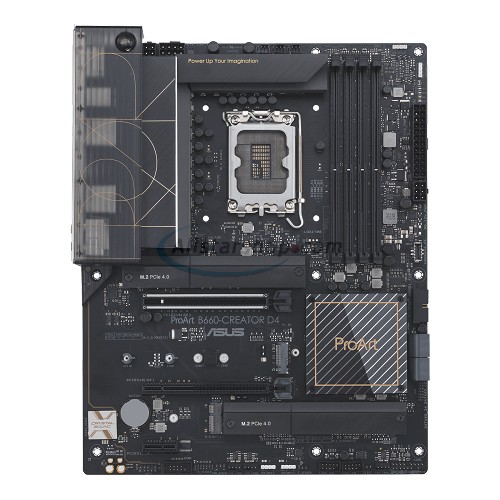

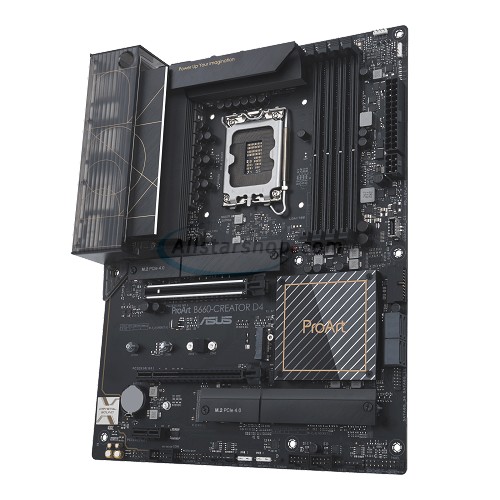

  • ProArt B660-CREATOR D4 motherboard
  • User's Manual
  • Supporting DVD
  • 2 x SATA cables
  • 1 x DisplayPort cable
  • 3 x M.2 Rubber Packages
  • 1 x Q-connector
  • 1 x ACC Express Activation Key Card
