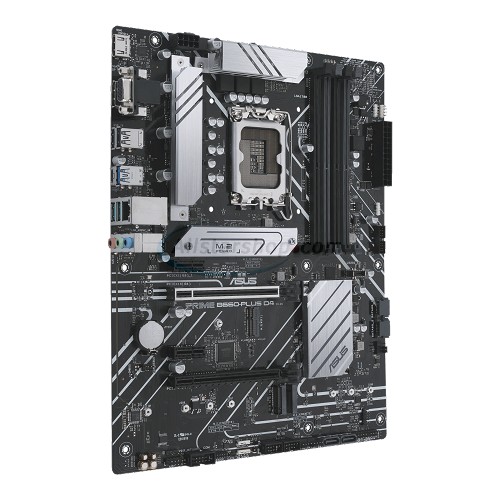

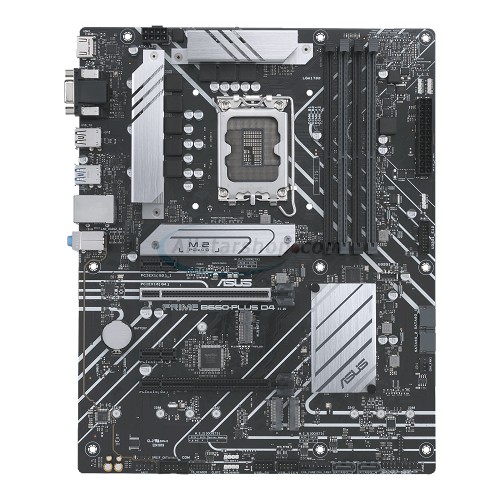

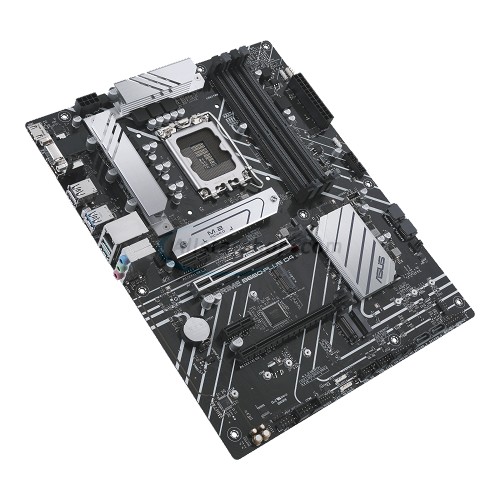

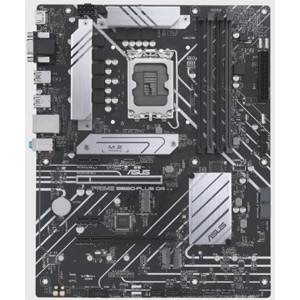

Asus PRIME B660-PLUS D4 B660 LGA1700 ATX Motherboard - (Discontinued)

Support: (812)282-2787

Asus PRIME B660-PLUS D4 B660 LGA1700 ATX Motherboard - (Discontinued)

SKU:	800-51135E

Integrated Intel Graphics - HDMI / DisplayPort / VGA
Max 128GB / 4x DDR4 DIMM / Up to 5066(O.C.)
4x SATA 6Gb/s, 3x M.2 / RAID 0, 1, 5, 10
3x USB 3.2 G2 (1x USB-C), 4x USB 3.2 G1 (1x USB-C), 6x USB 2.0
1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 2x PCIe x1

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Intel Core i5-12400 6-Core LGA1700 w/18MB cache CPU (BOX)

: Intel Core i5-12600K 10-Core LGA1700 w/20MB cache CPU (BOX)

: Kingston 16GB DDR4-3200 CL22 288-pin DIMM

Comprehensive controls form the foundation of the ASUS Prime series. The PRIME B660-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Description

Specifications

CPU Support

LGA1700 socket for 12th Generation Intel Core i9 / i7/ i5 / i3 Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel B660 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 4.0/3.0 x16

Number of Memory Slots

Type of Memory Supported

DDR4-5066(O.C.) / 5000(O.C.) / 4800(O.C) / 4700(O.C) / 4600(O.C) / 4500(O.C) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory

Maximum RAM

128GB

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C port
2 x USB 3.2 Gen2 Type-A ports
1 x USB 3.2 Gen1 Type-A port
2 x USB 2.0 ports
1 x DisplayPort
1 x VGA
1 x HDMI
1 x RJ-45 LAN
1 x Audio I/O

Number of PCI/PCI-Express Slots

1 x PCIe 4.0/3.0 x16
1 x PCIe 3.0 x16 (max x4)
2 x PCIe 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280/22110 support PCIe 4.0 x4 mode
1 x M.2 socket, with M key, type 2242/2260/2280 support PCIe 4.0 x2 mode

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Realtek 2.5Gb Ethernet

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
2 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
1 x USB 3.2 Gen1 Type-A port on Back Panel I/O
1 x USB 3.2 Gen1 Type-C port via header
2 x USB 3.2 Gen1 Type-A port via header
2 x USB 2.0 ports on Back Panel I/O
4 x USB 2.0 ports via headers

Form Factor

ATX

Dimensions

12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: Asus
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Asus at (510)739-3777 Or visit Asus customer service online.
Technical Support: Asus (812)282-2787 or visit Asus technical support online.
