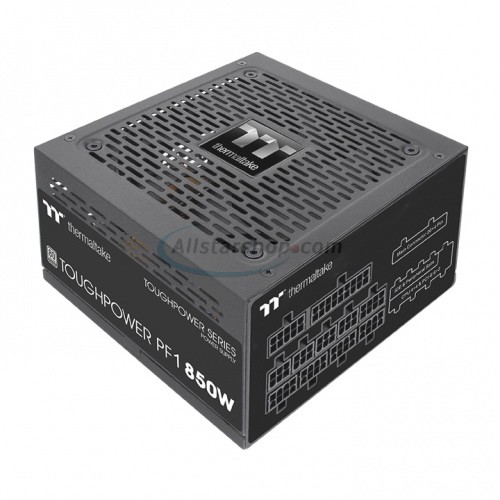

ThermalTake Toughpower PF1 850W power supply delivers 80 PLUS Platinum efficiency. It features compact size and ThermalTake's new board technology. With the small footprint of 140mm (D) x 86mm (H) x 150mm (L), the PF1 prides its ample space for cable management.

The new board technology offers single sided SMD which all IC chips are set to only one side, allowing the heat to only be accumulated on one side so the entire board can be covered and cooled down by the 120mm ultra quiet Hydraulic Bearing Fan

Ultra Quiet 120mm Hydraulic Bearing Fan
Featuring a 120mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

< 30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation ±2%
The voltage regulation, more strict than Intel's standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.

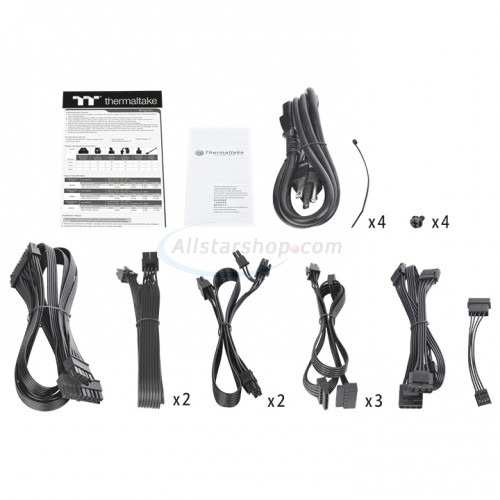

Output Connectors

24-pin Main Power x 1	4-pin+4 12V x 2

SATA x 9	4-pin Peripheral x 4	4-pin Floppy x 1	8-pin (6+2)pin PCI-E x 4
