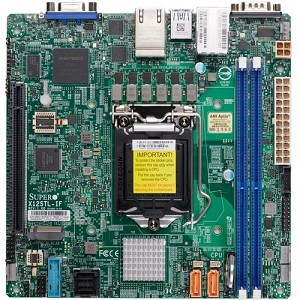

Supermicro X12STL-IF C252 LGA1200 Mini-ITX motherboard

SKU:	800-11737C

Integrated Graphics - VGA
Max 64GB / 2 Dimm DDR4 3200 ECC UDIMM
6x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
Up to 4x USB 3.2 G1, 4x USB 2.0
1x PCIe x16

Our Price:	Login to see price
Availability:	Usually ships within 1 week

Accessories

: Intel Xeon E-2324G 4-Core 3.1GHz LGA1200 w/8MB cache CPU (BOX)

: Intel Xeon E-2334 4-Core 3.4GHz LGA1200 w/8MB cache CPU (BOX)

: Intel Xeon E-2336 6-Core 2.9GHz LGA1200 w/12MB cache CPU (BOX)

The Supermicro X12STL-IF supports a single Intel Xeon E-2300 processor and up to 64GB ECC DDR4-3200 UDIMM memory in 2 DIMM slots. In addition, this motherboard has LAN that supports up to 2x RJ45 1GbE ports and 1x RJ45 dedicated IPMI for KVM over LAN.

Description

Specifications

CPU Support

Intel Xeon E-2300 Processor & 10th Gen Intel Pentium Processor

Number of Processor (s)

Single (Not Included)

Chipset

Intel C252

System Bios

UEFI

Number of Memory Slots

Type of Memory Supported

DDR4-3200/2933/2666MHz ECC UDIMM

Maximum RAM

64GB

Back Panel I/O

2 x USB 3.2 Gen1 Type-A ports
2 x USB 2.0 port
1 x VGA port
2 x RJ45 LAN
1 x Dedicated BMC LAN
1 x Serial port

Number of PCI/PCI Express Slots

1 x PCIe 4.0 x16

Integrated SATA/SAS

6 x SATA 6Gb/s

Integrated SATA/SAS RAID

RAID 0 ,1, 5, 10

# of M.2 Ports

1 x M.2 socket, with M key, type 2280 support PCIe 3.0 x4 mode

Integrated Video

ASPEED AST2600

Integrated LAN

2 x Intel I210 Gigabit LAN
1 x IPMI Dedicated LAN

IPMI

ASPEED AST2600

USB

2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
2 x USB 2.0 ports on Back Panel I/O
2 x USB 2.0 port via header

Serial/Parallel Ports

1 x Serial port on Back Panel I/O

Form Factor

Mini-ITX

Dimensions

6.7" x 6.7"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.
