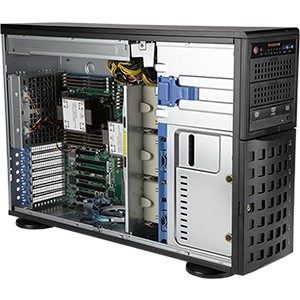

Supermicro SYS-740P-TRT 740P-TRT C621A XEON LGA4189 Tower w/ 2x 1280W PSU

Supermicro 740P-TRT C621A XEON LGA4189 Tower w/ 2x 1280W PSU

Support: (408) 503-8000

Supermicro 740P-TRT C621A XEON LGA4189 Tower w/ 2x 1280W PSU

SKU:	850-11734E

2x 3rd Gen Intel Xeon Scalable Processors
Max 4TB DDR4 3200MHz ECC RDIMM (16 DIMMs)
8x 3.5" SATA bays - hot swap
Intel X540 10GBase-T Ethernet controller
Integrated IPMI 2.0 with KVM and Dedicated LAN

Our Price:	Login to see price
Availability:	Usually ships within 1 week

Accessories

: Intel Xeon Silver 4310 12-Core 2.1GHz w/18MB LGA4189 CPU (Box)

: Intel Xeon Silver 4314 16-Core 2.4GHz w/24MB LGA4189 CPU (Box)

: Intel Xeon Silver 4316 20-Core 2.3GHz w/30MB LGA4189 CPU (Box)

Supermicro’s SuperWorkstations are optimized for applications requiring powerful compute and graphics capabilities. The SYS-7049GP-TRT GPU system is ideally for AI, deep learning, and/or HPC applications with support of the 3rd Gen Intel Xeon Scalable processors and up to 4TB DDR4-3200 RDIMM/LRDIMM, 4 PCI-E 4.0 x16 and 2 PCI-E 4.0 x8 expansion slots and On-board 2x 10G for networking.

Description

Specifications

Server Case Form Factor

4U/Tower
7" x 25.5" x 17.8" (W x D x H)

Processor

3rd Gen Intel Xeon Scalable processors
Dual (Not Included)

Chipset

Intel C621A

Bios

AMI UEFI

Type of Memory Supported

DDR4-3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM

Installed Memory

Maximum Memory Supported

4TB

Number of Memory Slots

Slots

4 x PCIe 4.0 x16
2 x PCIe 4.0 x8

Rear I/O Ports

4 x USB 3.2 Gen1 Type-A ports
1 x VGA
1 x Serial port
1 x RJ45 Dedicated IPMI LAN
2 x RJ45 LAN

Video

ASPEED AST2600 BMC

LAN

Intel X550 10GBASE-T
Dedicated IPMI LAN

SATA / SAS

8 x SATA 6Gb/s

USB Port (s)

Front: 2 x USB 2.0
Rear: 4 x USB 3.2 G1 Type-A

Ext. Drive Bays

3 x 5.25"
8 x 3.5"

Power

1280W Platinum 95%+ Redundant Power Supply with PMbus

Motherboard Manufacturer

Supermicro X12DPi-NT6

Manageability

IPMI 2.0, KVM with dedicated LAN

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.
