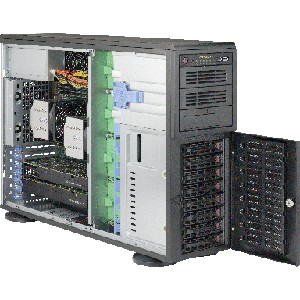

Supermicro SYS-7048A-T 7048A-T LGA2011-3 XEON C612 Rackmountable Tower w/ 1200W PSU (Black)

Supermicro 7048A-T LGA2011-3 XEON C612 Rackmountable Tower w/ 1200W PSU (Black) - (Discontinued)

Support: (408) 503-8000

Supermicro 7048A-T LGA2011-3 XEON C612 Rackmountable Tower w/ 1200W PSU (Black) - (Discontinued)

SKU:	850-11714E

2x LGA2011-3 E5-2600 v4 / v3 series
Max 1TB DDR4 2133/1866/1600/1333MHz ECC Registered (16 Dimm)
8x 3.5" SATA bays - Hot Swap - RAID 0, 1, 10 - C612
Intel i210AM Dual-Port Gigabit Ethernet

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Supermicro MCP-220-00080-0B Drive Bay Adapter - Internal

Designed for optimal performance, the dual-processor Supermicro 7048A-T support the QPI (9.6 GT/s) format Xeon E5-2600 v4,, v3 Family processors in a 4U Rackmountable / Tower.

Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4, v3 family; QPI up to 9.6GT/s
Up to 1TB reg. ECC DDR4 2133MHz; 16x DIMM sockets
3x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
Intel i210 Dual port GbE LAN
8x 3.5" Hot-swap SATA HDD Bays
1200W High Efficiency Power Supply Platinum Level (94%)

Description

Designed for optimal performance, the dual-processor Supermicro 7048A-T support the QPI (9.6 GT/s) format Xeon E5-2600 v4,, v3 Family processors in a 4U Rackmountable / Tower.

Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4, v3 family; QPI up to 9.6GT/s
Up to 1TB reg. ECC DDR4 2133MHz; 16x DIMM sockets
3x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, and 1x PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
Intel i210 Dual port GbE LAN
8x 3.5" Hot-swap SATA HDD Bays
1200W High Efficiency Power Supply Platinum Level (94%)

Specifications

Server Case Form Factor

4U Rackmountable / Tower
17.8" x 7" x 25.5" (H x W x D)

Processor

Intel Xeon processor E5-2600 v3
Intel Xeon processor E5-2600 v3
Dual (Not Included)

Chipset

Intel C612

Bios

128Mb SPI Flash EEPROM with AMI BIOS

Type of Memory Supported

Maximum Memory Supported

Number of Memory Slots

Slots

3 x PCIe 3.0 x16
2 x PCI-E 3.0 x8
1 x PCI-E 2.0 x4 (in x8)

Rear I/O Ports

4 x USB 3.0
2 x USB 2.0
1 x Serial port
2 x RJ45 LAN ports
1 x Audio I/O

Audio

RealTek ALC889 7.1 High Definition Audio

LAN

Intel i210 Dual Port Gigabit Ethernet

SATA / SAS

10 x SATA 6Gb/s

SCSI

Not Available

USB Port (s)

2 x USB 3.0 on Front Panel I/O
4 x USB 3.0 on Back Panel I/O
2 x USB 2.0 on Back Panel I/O

Floppy Disk Drive

Not Included

Optical Drive(s)

Not Included

Ext. Drive Bays

3 x 5.25" Drive Bays
8 x 3.5" Hot-swap SAS/SATA Drive Trays

Int. Drive Bays

Not Available

Power

1200W high-efficiency power supply w/ PMBus

Motherboard Manufacturer

Supermicro X10DAi

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.

Package Contents

1 x Super X10DAi Motherboard
1 x 743TQ-1200B-SQ 4U Chassis
2 x SNK-P0050AP4 4U Active CPU Heat Sink
1 x CBL-0160L NEMA5-15P to C13 US power cord

Compatible Accessories

Case Accessories

Supermicro MCP-220-00080-0B Drive Bay Adapter - Internal

Manufacturer: Supermicro

Mfg P/N: MCP-220-00080-0B
