SKU: 850-11726F
  • 2x LGA1366 Xeon 5600/5500 series
  • Max 192GB DDR3 1333/1066/800MHz ECC Reg (12 DIMMs)
  • 8x 3.5" SAS/SATA bays - Hot Swap - RAID 0/1/10 - LSI 2008
  • 2x Intel 82574L Gigabit Ethernet Controllers
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
Our Price: Login to see price
Discontinued - Not orderable


Specifications

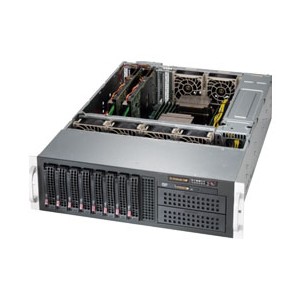

Server Case Form Factor
3U Rackmount Width: 17.2" x Height: 7" x Depth: 25.5"
Processor
    Dual 1366-pin LGA Sockets:
    • Intel XeonProcessor 5600 Series (Westmere)
    • Intel Xeon Processor 5500 Series (Nehalem-EP)
Chipset
  • Intel 5520 (Tylersburg) chipset
  • ICH10R + IOH-36D
Bios
32Mb SPI Flash EEPROM with AMI® BIOS
Type of Memory Supported
  • 240-pin DDR3 1333/1066/800 MHz ECC Registered memory
      • OR
  • 240-pin DDR3 1333/1066/800 MHz ECC / Non ECC Unbuffered memory
Maximum Memory Supported
  • 192 GB ECC Registered memory
      • OR
  • 48 GB ECC / Non ECC Unbuffered memory
Number of Memory Slots
12
Slots
  • 4 x PCI-Express 2.0 X8
  • 1 x PCI-Express 2.0 X4
  • 1 x PCI-Express X4
Rear I/O Ports
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 4 x USB 2.0 ports
  • 1 x Serial port
  • 1 x 15-pin VGA
  • 2 x RJ45 LAN ports
  • 1 x RJ45 LAN dedicated IPMI
Audio
No
Video
Matrox G200eW
LAN
  • 2 x Intel 82574L Gigabit Ethernet Controllers
  • 1 x Realtek RTL8201N PHY (dedicated IPMI)
SATA / SAS
    SAS
    • LSI SAS 2008 6Gb/s
    • Supports RAID 0,1,10
    • Optional: AOC-SAS2-RAID5-KEY, RAID 5
    SATA
    • Intel ICH10R SATA 3.0Gb/s
    • Windows : RAID 0, 1, 5, 10
    • Linux : RAID 0, 1, 10
SCSI
No
USB Port (s)
    Up to 8 x USB ports:
    • 4 x USB ports on Back Panel I/O
    • 4 x USB ports via headers
Floppy Disk Drive
No
Optical Drive(s)
No
Ext. Drive Bays
  • 8 x 3.5" Hot-swap Drives Trays
  • 2 x 5.25" Peripheral Drive Bay
  • 1 x 3.5" Bay for Floppy
Int. Drive Bays
No
Power
650W AC-DC high-efficiency power supply w/ PFC Redundant Cooling
Motherboard Manufacturer
X8DTE-F

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
