Supermicro SYS-511E-WR 511E-WR C741 XEON LGA4677 1U w/2x 860W

Supermicro 511E-WR C741 XEON LGA4677 1U w/2x 860W - (Discontinued)

Support: (408) 503-8000

Supermicro 511E-WR C741 XEON LGA4677 1U w/2x 860W - (Discontinued)

SKU:	850-11738C

4th Gen Intel Xeon Scalable Processors
Max 2TB DDR5 4800MHz ECC RDIMM (8 DIMMs)
4x 3.5" bays - Hot Swap
Integrated IPMI 2.0 with KVM and Dedicated LAN

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Intel Xeon Silver 4410T 10-Core 2.7GHz w/26.25MB LGA4677 CPU (Tray)

: Intel Xeon Silver 4410Y 12-Core 2GHz w/30MB LGA4677 CPU (Tray)

: Kingston 16GB DDR5-4800 ECC Reg CL40 1Rx8 288-pin RDIMM

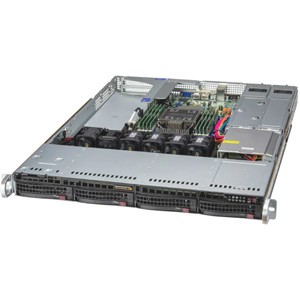

The Supermicro SYS-511E-WR WIO SuperServer supports 4th Gen Intel Xeon Scalable Processors (up to 52 cores) and 2TB ECC DDR5-4800MT/s RDIMM memory in 8 DIMM slots. The SYS-511E-WR includes 4 hot-swappable 3.5” SATA drive bays which makes changing hard drives easy without needing to open up the server. In addition, this WIO server supports up to 2 SuperDOM with built-in power and a M.2 slot, which is designed for use as a boot drive, backup recovery device, license drive, or OS installation device (replacing CD/DVD-ROMs).

Description

Specifications

Server Case Form Factor

1U
17.2" x 25.6" x 1.7"

Processor

4th Gen Intel Xeon Scalable processors
Single (Not Included)
Up to 300W

Chipset

Intel C741

Bios

AMI

Type of Memory Supported

DDR5-4800/4400MHz ECC RDIMM

Maximum Memory Supported

2TB

Number of Memory Slots

Slots

2 x PCIe 5.0 x16 FHFL
1 x PCIe 5.0 x8 (in x16) LP

Rear I/O Ports

2 x USB 3.2 Gen1 Tpye-A
2 x USB 2.0
1 x VGA
1 x Serial port
1 x RJ45 Dedicated IPMI LAN
2 x RJ45 1GbE LAN

Video

ASPEED AST2600

LAN

2 x Intel I210 Gigabit LAN
1 x Dedicated IPMI LAN

SATA / SAS

8 x SATA 6Gb/s
1x PCIe 3.0 x 2 M-key, 2280, 22110

Ext. Drive Bays

4 x 3.5" SATA/SAS drive bays

Power

Redundant Platinum 860W Power Supplies

Motherboard Manufacturer

Supermicro X13SEW-F

Manageability

IPMI 2.0

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.
