Supermicro SYS-5028L-TN2 5028L-TN2 LGA1150 XEON Q87 Mini Tower w/ 250W

Supermicro 5028L-TN2 LGA1150 XEON Q87 Mini Tower w/ 250W - (Discontinued)

Support: (408) 503-8000

Supermicro 5028L-TN2 LGA1150 XEON Q87 Mini Tower w/ 250W - (Discontinued)

SKU:	850-11720M

1x LGA1150 Xeon E3-1200 v3 series
Max 16GB DDR3 1600 (2 SO-DIMMs)
3x SATA 6Gb/s, 1x M.2 / RAID 0,1,5,10

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Kingston 4GB DDR3-1600 CL11 SRx8 Notebook SODIMM

: Kingston 8GB DDR3-1600 PC3-12800 CL11 Notebook SODIMM

: Supermicro MCP-220-00043-0N 2.5" HDD in 4th generation 3.5" drive tray

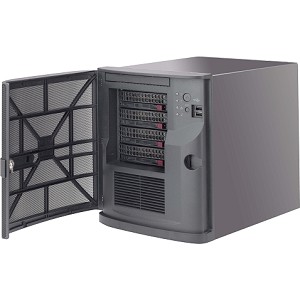

Supermicro's mini-tower, SYS-5028L-TN2, is a compact cloud server ideal for database processing and storage, business intelligence, security appliance, surveillance, and SMB. Powered by the Xeon E3-1200 v3 family or 4th Gen. Core i7/i5/i3 processor, they are ideal for Database Processing & Storage.

Single socket H3 (LGA 1150) supports Intel Xeon E3-1200 v3, 4th gen. Core i7/i5/i3, Pentium, Celeron processors
Drive Bays:
- 4x 3.5" Hot-swap drive bays
- 2x 2.5" internal drive bays
Expansion Slots
- 1x PCI-E 3.0 x16 slot
- 1x Mini-PCIe with mSATA support
Up to 16GB DDR3 non-ECC 1600MHz SODIMM in 2 sockets
Intel i217 + Intel i210AT Gigabit Ethernet
250W Flex ATX Multi-output Bronze Power Supply

Description

Single socket H3 (LGA 1150) supports Intel Xeon E3-1200 v3, 4th gen. Core i7/i5/i3, Pentium, Celeron processors
Drive Bays:
- 4x 3.5" Hot-swap drive bays
- 2x 2.5" internal drive bays
Expansion Slots
- 1x PCI-E 3.0 x16 slot
- 1x Mini-PCIe with mSATA support
Up to 16GB DDR3 non-ECC 1600MHz SODIMM in 2 sockets
Intel i217 + Intel i210AT Gigabit Ethernet
250W Flex ATX Multi-output Bronze Power Supply

Specifications

Server Case Form Factor

Mini Tower

Processor

Intel Xeon E3-1200 v3 product family
Intel 4th generation Intel Core i3, Pentium, Celeron processors

Chipset

Intel Q87 Express Chipset

Type of Memory Supported

204-pin DDR3 1600Mhz non-ECC SODIMM

Maximum Memory Supported

16GB

Number of Memory Slots

Slots

1 x PCI-Express 3.0 X16

Rear I/O Ports

2 x USB 3.0
2 x USB 2.0
1 x DVI
1 x HDMI
1 x DisplayPort
2 x RJ45 LAN ports
1 x Audio I/O

Audio

RealTek ALC888S 7.1 High Definition Audio

Video

Intel HD 4600 Graphics, Processor Graphic

LAN

Intel i217 + i210AT Controllers

SATA / SAS

3 x SATA 3.0
1 x mSATA 3.0

SCSI

Not Available

USB Port (s)

2 x USB 3.0 ports on Back Panel I/O
2 x USB 2.0 ports on Back Panel I/O
2 x USB 2.0 ports via headers
1 x type A

Floppy Disk Drive

Not Available

Optical Drive(s)

Not Included

Ext. Drive Bays

1 x slim DVD-ROM drive bay
4 x 3.5"

Int. Drive Bays

2 x 2.5"

Power

250W Flex ATX Multi-output Bronze Power Supply

Motherboard Manufacturer

Supermicroo X10SLV-Q

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.
