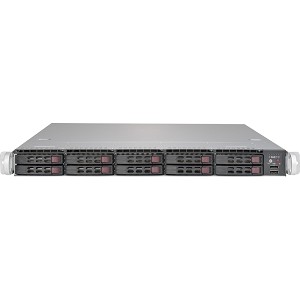

SKU: 850-11717C
  • LGA3647 2nd Gen Xeon Scalable family
  • Max 768GB DDR4 2933/2666/2400/2133 LRDIMM (6 DIMMs)
  • 8x 2.5" SATA bays - Hot Swap - RAID 0, 1, 10, 5
  • Intel x722 + X557 Dual port RJ45 10GbE
  • 2x PCIe 3.0 x16 full height spts and 1x PCIe 3.0x8 Low-profile slot
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Server Case Form Factor
  • 1U
  • 17.2" x 23.5" x 1.7" (W x D x H)
Processor
  • 2nd Gen Intel Xeon processor Scalable family with maximum TDP of 205W.
  • Socket P
  • Single (Not Included)
Chipset
Intel C622
Bios
AMI 32Mb SPI Flash ROM
Type of Memory Supported
  • DDR4-2933/2666/2400/2133MHz ECC RDIMM/LRDIMM
  • Maximum Memory Supported
    • LRDIMM: 768 GB/li>
    • RDIMM: 384 GB
    Number of Memory Slots
    6
    Slots
    • 2 x PCIe 3.0 x16 (FHFL)
    • 1 x PCIe 3.0 x8 (LP)
    Rear I/O Ports
    • 2 x USB 3.0 ports
    • 2 x USB 2.0 ports
    • 1 x VGA
    • 1 x Serial port
    • 2 x RJ45 10GBase-T LAN
    • 1 RJ45 Dedicated IPMI LAN
    Video
    ASPEED AST250
    LAN
    • Intel X722 10GBase-T
    • Intel X557 10GBase-T
    SATA / SAS
    10 x SATA 6Gb/s
    USB Port (s)
    • 2 USB 3.0 ports rear I/O
    • 2 x USB 2.0 ports rear I/O
    Optical Drive(s)
    Not Included
    Ext. Drive Bays
    10 x 2.5"
    Power
    500W Redundant Power Supplies with PMBus
    Motherboard Manufacturer
    Super X11SPW-TF
    Manageability
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Compatible Accessories

    Memory

    Kingston 16GB DDR4-3200 ECC Reg CL22 SRx8 288-pin RDIMM
    • PC4-25600
    • Single-rank x8
    Manufacturer: Kingston
    Mfg P/N: KSM32RS8/16HCR
    Availability: Usually ships with 1-2 business days
    Kingston 32GB DDR4-3200 ECC Reg CL22 2Rx8 288-pin RDIMM
    • PC4-25600
    • Dual-rank x8
    Manufacturer: Kingston
    Mfg P/N: KSM32RD8/32HCR
    Availability: Usually ships with 1-2 business days
