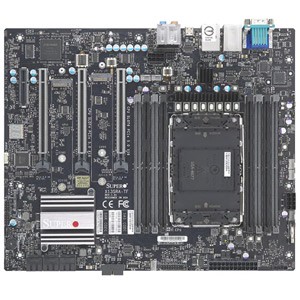

Supermicro MBD-X13SRA-TF-O X13SRA-TF W790 XEON LGA4677 CBE Workstation Board

Supermicro X13SRA-TF W790 XEON LGA4677 CBE Workstation Board

Support: (408) 503-8000

Supermicro X13SRA-TF W790 XEON LGA4677 CBE Workstation Board

SKU:	800-11783A

Xeon W-3400 and W-2400
Max 2TB / 8 DIMM DDR5-4800 ECC RDIMM
6x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
2x USB 3.2 G2 (2x USB-C), 6x USB 3.2 G1, 2x USB 2.0
3x PCIe 5.0 x16, 1x PCIe 4.0 x4

Our Price:	Login to see price
Availability:	Usually ships within 1-2 business days

Accessories

: Intel Xeon w5-2465X 16-Core 3.1GHz w/33.75MB LGA4677 CPU (Tray)

: Kingston 16GB DDR5-4800 ECC Reg CL40 1Rx8 288-pin RDIMM

: Kingston 32GB DDR5-4800 ECC Reg CL40 2Rx8 288-pin RDIMM

Supermicro X13SRA-TF workstation motherboard bring data center CPU processing power and PCIe expandability to the desktop for AI, simulation, metaverse/Omniverse and 3D media applications. Fuel your creative workflows and boost productivity with a single Intel Xeon W-2400 processor, lightning-fast M.2 NVMe PCIe 5.0 storage, and up to 1TB of DDR5 RAM.

Description

Specifications

CPU Support

Intel Socket LGA4677 for Xeon W-3400 and W-2400 Series Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel W790 chipset

System Bios

AMI BIOS

Number of Memory Slots

Type of Memory Supported

DDR5-4800 ECC RDIMM

Maximum RAM

2TB RDIMM 3DS
512GB ECC RDIMM

Back Panel I/O

1 x USB 3.2 Gen 2x2 Type-C port
4 x USB 3.2 Gen1 Type-A ports
1 x VGA
1 x Serial port
2 x RJ45 LAN
1 x Audio I/O

Number of PCI/PCI Express Slots

3 x PCIe 5.0 x16
1 x PCIe 4.0 x4

Integrated SATA/SAS

6 x SATA 6Gb/s

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

# of M.2 Ports

2 x M.2 socket, with M key, type 2280/22110 support PCIe 5.0 x4 mode

Integrated Audio

Realtek ALC888S 7.1 HD Audio

Integrated Video

ASPEED AST2600 BMC

Integrated LAN

Marvell AQC113 10GbE
Intel I210-AT Ethernet

IPMI

ASPEED AST2600

USB

1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen 2x2 Type-C port via header
4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
2 x USB 2.0 via header

Serial/Parallel Ports

1 x Serial port on Back Panel I/O

Form Factor

CBE

Dimensions

12" x 10"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.
