SKU: 800-11763C
  • Max 2TB / 8 DIMM DDR4 3200/2933/2666MHz ECC Registered
  • 10x SATA 6GB/s, 1x M.2 / RAID 0, 1, 5, 10
  • Up to 5x USB 3.2 G1, 6x USB 2.0
  • 2x PCIe 4.0x16, 1x PCIe 4.0 x8
Our Price: Login to see price
Availability: Temporarily out of stock


Specifications

CPU Support
3rd Gen Intel Xeon Scalable processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel C621A
System Bios
AMI UEFI
Number of Memory Slots
8
Type of Memory Supported
DDR4-3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM
Maximum RAM
2TB
Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0 ports
  • 1 x VGA
  • 1 x RJ45 Dedicated IPMI LAN
  • 2 x RJ45 LAN
Number of PCI/PCI Express Slots
  • 2 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x8
Integrated SATA/SAS
  • 8 x SATA 6Gb/s via 2 mini-SAS HD
  • 2 x SATA 6Gb/s
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
# of M.2 Ports
1 x M.2 2280/22110 Supports SATA & PCIe 3.0 x4 mode
Integrated Video
ASPEED AST2600 BMC
Integrated LAN
  • Intel X550 10GBase-T
  • Dedicated IPMI LAN
IPMI
IPMI 2.0, KVM with dedicated LAN
USB
  • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 1 x USB 3.2 Gen1 Type-A port onboard
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 2 x USB 2.0 ports on Back Panel I/O
  • 4 x USB 2.0 ports via headers
Serial/Parallel Ports
1 x Serial port via header
Form Factor
micro ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

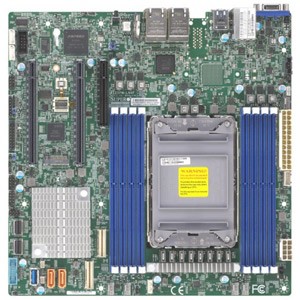

  • X12SPM-TF motherboard
  • Motherboard Quick Reference Guide
  • I/O Shield
  • 2 x SATA cable

Compatible Accessories

Chassis

Supermicro 813MF2TQC-505CB 1U Rackmount w/ 500W PSU
  • Motherboard: ATX, micro-ATX
  • 4 x 3.5" Hot-swap SAS/SATA HD bays
  • 4 x 40x28mm 22.5K RPM PWM fans
Manufacturer: Supermicro
Mfg P/N: CSE-813MF2TQC-505CB
Availability: Temporarily out of stock
Supermicro 825TQC-R802LPB 2U Rackmount w/ 2x 800W PSU
  • Motherboard: E-ATX, ATX, micro-ATX
  • 8 x 3.5" Hot-swap SAS/SATA HD bays
  • 3 x 80mm 9.4K RPM Fans
  • 800W Platinum Redundant power supply
Manufacturer: Supermicro
Mfg P/N: CSE-825TQC-R802LPB
Availability: Temporarily out of stock
Supermicro SC113MFAC2-605CB 1U Rackmount w/ 600W PSU
  • Motherboard: ATX, micro-ATX
  • 8 x 2.5" Hot-swap SAS/SATA HD bays
  • 600W High-efficiency Platinum Level Power Supplies
  • 4 x 40mm 22.5K RPM Fans
Manufacturer: Supermicro
Mfg P/N: CSE-113MFAC2-605CB
Availability: Temporarily out of stock

CPU

Intel Xeon Silver 4310 12-Core 2.1GHz w/18MB LGA4189 CPU (Box)
  • 12x Cores / 24x Threads / Turbo Boost: 3.3 GHz
  • Supported Memory: DDR4-2667
  • Max # of PCIe 4.0 Lane: 64
  • TDP: 120W
Manufacturer: Intel
Mfg P/N: BX806894310
Availability: Usually ships same day
Intel Xeon Silver 4314 16-Core 2.4GHz w/24MB LGA4189 CPU (Box)
  • 16x Cores / 32x Threads / Turbo Boost: 3.4 GHz
  • Supported Memory: DDR4-2667
  • Max # of PCIe 4.0 Lane: 64
  • TDP: 135W
Manufacturer: Intel
Mfg P/N: BX806894314
Availability: Temporarily out of stock
Intel Xeon Silver 4316 20-Core 2.3GHz w/30MB LGA4189 CPU (Box)
  • 20x Cores / 40x Threads / Turbo Boost: 3.4 GHz
  • Supported Memory: DDR4-2667
  • Max # of PCIe 4.0 Lane: 64
  • TDP: 150W
Manufacturer: Intel
Mfg P/N: BX806894316
Availability: Usually ships with 1-2 business days

Memory

Kingston 16GB DDR4-3200 ECC Reg CL22 DRx8 288-pin RDIMM
  • PC4-25600
  • Dual-rank x8
Manufacturer: Kingston
Mfg P/N: KSM32RD8/16HDR
Availability: Usually ships with 1-2 business days
Kingston 32GB DDR4-3200 ECC Reg CL22 2Rx4 288-pin RDIMM
  • PC4-25600
  • Dual-rank x4
Manufacturer: Kingston
Mfg P/N: KSM32RD4/32HDR
Availability: Usually ships with 1-2 business days
Kingston 8GB DDR4-3200 ECC Reg CL22 SRx8 288-pin RDIMM
  • PC4-25600
  • Single-rank x8
Manufacturer: Kingston
Mfg P/N: KSM32RS8/8HDR
Availability: Usually ships with 1-2 business days

Cooling

Supermicro SNK-P0078AP4 2U Active CPU Heat Sink for X12 Whitley Platforms
  • 2U Active CPU Heat Sink
  • 3rd Gen Intel Xeon Scalable Processors
  • LGA4189
Manufacturer: Supermicro
Mfg P/N: SNK-P0078AP4
Availability: Usually ships with 1-2 business days
