SKU: 800-11791
  • Integrated Graphics - VGA
  • Max 64GB / 4 Dimm DDR4 ECC UDIMM
  • 8x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
  • Up to 5x USB 3.0, 6x USB 2.0
  • 1x PCIe X16, 2x PCIe X8
Our Price: Login to see price
Availability: Usually ships within 1 week


Specifications

CPU Support
    LGA1151 socket for:
    • Intel Xeon processor E3-1200 v5
    • 7th/6th Generation Intel Core i3/Pentium/Celeron Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel C236 chipset
System Bios
AMI BIOS
Video card slot
PCIe 3.0 X16
Number of Memory Slots
4
Type of Memory Supported
288-pin DDR4 ECC un-buffered memory
Maximum RAM
64GB
Back Panel I/O
  • 2 x USB 3.0 (USB 3.1 Gen1) ports
  • 2 x USB 2.0 ports
  • 1 x Serial port
  • 1 x VGA
  • 2 x RJ45 LAN ports
  • 1x RJ45 Dedicated IPMI LAN
Number of PCI/PCI-Express Slots
  • 1 x PCIe 3.0 x16 (max. x8)
  • 1 x PCIe 3.0 x8
  • 1 x PCIe 3.0 x8 (max. x4)
Integrated SATA/SAS
8 x SATA 6Gb/s
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
# of M.2 Ports
1 x M.2 Mini PCI Express 3.0 x2, 2280 storage devices
# of SATA Express Ports
Not Available
Integrated Audio
Not Available
Integrated Video
Integrated ASPEED AST2400
Integrated LAN
2 x Intel I210-AT Gigabit LAN
IPMI
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
USB
    Up to 11 x USB ports:
    • 2 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
    • 2 x USB 3.0 (USB 3.1 Gen1) ports via headers
    • 1 Type A USB 3.0 (USB 3.1 Gen1) port
    • 2 x USB 2.0 ports on Back Panel I/O
    • 4 x USB 2.0 ports via headers
IEEE 1394
Not Available
Serial/Parallel Ports
  • 1 x Serial port on Back Panel I/O
  • 1 x Serial port via header
PS/2 Ports
Not Available
Form Factor
micro ATX
Dimensions
9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

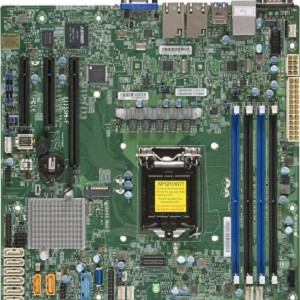

  • X11SSH-F motherboard
  • I/O Shield
  • SATA 6Gb/s cables
