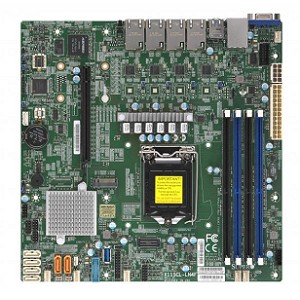

Supermicro X11SCL-LN4F C242 LGA1151 mATX motherboard

Support: (408) 503-8000

Supermicro X11SCL-LN4F C242 LGA1151 mATX motherboard

SKU:	800-11721F

Integrated Graphics - VGA
Max 64GB / 4 Dimm DDR4 2666 ECC UDIMM
6x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
Up to 5x USB 3.0, 4x USB 2.0
1x PCIe X16

Our Price:	Login to see price
Availability:	Usually ships within 1 week

Accessories

: Supermicro SC825TQC-R740LPB 2U Rackmount w/ 2x740W PSU

: Supermicro SC813MFTQC-350CB2 1U Rackmount w/ 350W PSU (Black)

: Supermicro SC813MFTQC-R407CB 1U Rackmount w/ 2x400W PSU (Black)

The Super X11SCL-LN4F motherboards supports an Intel Xeon E-2100, 8th Generation Core i3, Pentium, and Celeron (Socket H4 - LGA 1151) processor with up to six cores and a thermal design power (TDP) of up to 95W. Built with the Intel C242 chipset, this motherboard supports 4-DIMM DDR4 ECC unbuffered (UDIMM) memory (2-DIMM per channel) with speeds of up to 2666MHz. It features PCI-Express 3.0 slots, SATA 3.0 ports, four 1GbE LAN ports, and a Trusted Platform Module (TPM) header.

Description

Specifications

CPU Support

Intel Xeon E-2100 series, 8th Gen Core i3, Pentium and Celeron processors in an LGA1151 (H4) socket. 95W max TDP.

Number of Processor (s)

Single (Not Included)

Chipset

Intel C242

System Bios

AMI BIOS

Number of Memory Slots

Type of Memory Supported

288-pin DDR4 2666 MHz Unbuffered ECC UDIMM

Maximum RAM

64GB

Back Panel I/O

2 x USB 3.0 (USB 3.1 Gen1) ports
2 x USB 2.0 ports
1 x VGA
4 x RJ45 LAN
1 x Dedicated IPMI LAN

Number of PCI/PCI Express Slots

1 x PCIe 3.0 x16

Integrated SATA/SAS

6 x SATA 6Gb/s

Integrated SATA/SAS RAID

RAID 0,1,5,10

# of M.2 Ports

1 x M.2 2280/22110 support PCIe 3.0 x4

Integrated Video

ASPEED AST2500

Integrated LAN

4 x Intel I210-AT Gigabit LAN
1 x Dedicated IPMI LAN

USB

2 x USB 3.0 (USB 3.1 Gen1) ports on Back Panel I/O
2 x USB 3.0 (USB 3.1 Gen1) ports via headers
1 x USB 3.0 (USB 3.1 Gen1) port internal
2 x USB 2.0 ports on Back Panel I/O
2 x USB 2.0 ports via headers

Serial/Parallel Ports

1 x Serial port via header

Form Factor

microATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
