SKU: 800-11707C
  • Max 2TB / 8 DIMM DDR4 2666/2400/2133MHz ECC Registered
  • 10x SATA 6Gb/s, 1x M.2 / RAID 0, 1, 5, 10
  • Up to 3x USB 3.0, 4x USB 2.0
  • 2x PCIe X16, 4x PCIe X8
Our Price: Login to see price
Availability: Usually ships within 1 week


Specifications

CPU Support
  • 1st and 2nd Gen Intel Xeon processor Scalable family with maximum TDP of 205W
  • Socket P
Number of Processor (s)
Dual (Not Included)
Chipset
Intel C621
System Bios
AMI UEFI
Number of Memory Slots
8
Type of Memory Supported
DDR4-2666/2400/2133MHz ECC RDIMM/LRDIMM
Maximum RAM
  • 3DS LRDIMM: 2TB
  • LRDIMM: 2TB
Back Panel I/O
  • 2 x USB 2.0
  • 1 x VGA
  • 2 x RJ45 LAN
  • 1 x RJ45 Dedicated IPMI LAN port
Number of PCI/PCI Express Slots
  • 2 x PCIe 3.0 x16
  • 3 x PCIe 3.0 x8
  • 1 x PCIe 3.0 X8 (max. x4)
Integrated SATA/SAS
10 x 6Gb/s
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
# of M.2 Ports
1 x M.2 Socket 3, with M key, type 2260/2280 storage devices support PCIE 3.0 x4 mode
Integrated Video
Aspeed AST2500
Integrated LAN
Marvell 88E1512 Gigabit LAN
IPMI
IPMI 2.0, KVM with dedicated LAN
USB
  • 1 x USB 3.0 Type-A
  • 2 x USB 3.0 ports via header
  • 2 x USB 2.0 ports on Back Panel I/O
  • 2 x USB 2.0 ports via header
Serial/Parallel Ports
1 x Serial port via header
Form Factor
ATX
Dimensions
12.076" x 10.15"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

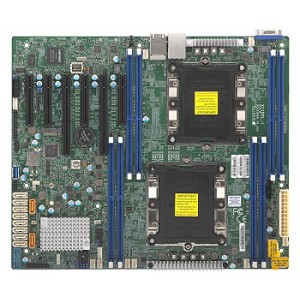

  • X11DPL-i motherboard
  • I/O Shield
  • 6 x SATA cable

Compatible Accessories

Cooling

Supermicro SNK-P0067PD 1U Passive CPU Heat Sink for X11DPL
  • Socket LGA3647-0 Square Mounting Mechanism
Manufacturer: Supermicro
Mfg P/N: SNK-P0067PD
Availability: Lead time: 1 week
Supermicro SNK-P0068AP4 2U Active CPU Heat Sink for X11 Purley Platform
  • FCLGA3647-0 (Square Mounting Mechanism)
  • 8,400 RPM
Manufacturer: Supermicro
Mfg P/N: SNK-P0068AP4
Availability: Usually ships with 1-2 business days
