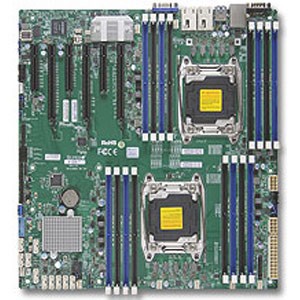

SKU: 800-11764
  • Integrated ASPEED AST2400 Graphics Controller - VGA
  • Max 1TB / 16 Dimm DDR4 2133/1866/1600MHz ECC Registered
  • 10x SATA 6Gb/s / RAID 0, 1, 5, 10
  • Up to 3x USB 3.0
  • 2x PCIe X16, 3x PCIe X8
Our Price: $576.50
List Price: $649.00 You save: $72.50
Availability: Temporarily out of stock
  Alert Me



Specifications

CPU Support
  • Intel Xeon processor E5-2600 v4
  • Intel Xeon processor E5-2600 v3
Number of Processor (s)
Dual (Not Included)
Chipset
Intel C612
System Bios
128Mb SPI Flash EEPROM with AMI BIOS
Video card slot
PCIe 3.0 x16
Number of Memory Slots
16
Type of Memory Supported
    288-pin DDR4 2133/1866/1600MHz ECC LRDIMM
      or
    288-pin DDR4 2133/1866/1600MHz ECC RDIMM
Maximum RAM
    ECC LRDIMM: 1TB
      or
    ECC RDIMM: 512GB
Back Panel I/O
  • 2 x USB 3.0
  • 2 x USB 2.0
  • 1 x Serial port
  • 1 x 15-pin VGA
  • 2 x RJ45 10GBase-T LAN ports
  • 1 x RJ45 Dedicated IPMI LAN port
Number of PCI/PCI-Express Slots
  • 3 x PCIe 3.0 x16
  • 3 x PCIe 3.0 x8
Integrated SATA/SAS
10 x SATA 6Gb/s
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Not Available
Integrated Video
ASPEED AST2400 BMC
Integrated LAN
Intel X540 Dual Port 10GBase-T
IPMI
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
USB
    Up to 11 x USB
    • 2 x USB 3.0 on Back Panel I/O
    • 2 USB 3.0 via header
    • 1 x Type A USB 3.0
    • 2 x USB 2.0 on Back Panel I/O
    • 4 x USB 2.0 via header
IEEE 1394
Not Available
Serial/Parallel Ports
  • 1 x Serial port on Back Panel I/O
  • 1 x Serial port via header
PS/2 Ports
Not Available
Form Factor
E-ATX
Dimensions
12" x 13"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

  • Supermicro X10DRi-T
  • 2 x SATA cable
  • 1 x I/O Shield

Compatible Accessories

Chassis

Supermicro SC213A-R740LPB 2U Rackmount w/ 740W Redundant PSU
  • Motherboard: E-ATX, ATX, micro-ATX
  • 16 x 2.5" Hot-Swap SAS/SATA Drive Bays
  • 3 x 80mm 3400 high-performanceFan
  • 740W Platinum Level Redundant high-efficiency power supply with PMBus
  • SAS/SATA support / Mini-I-pass Connectivity
Manufacturer: Supermicro
Mfg P/N: CSE-213A-R740LPB
Availability: Temporarily out of stock
$833.95
Supermicro SC826BE1C-R920LPB 2U 12-bay with 920W Redundant PSU (Black)
  • 12 x 3.5" Hot-swap SAS3/SATA HD bays
  • 920W Redundant Power Supplies Platinum Level (94%+)
  • 12Gb/s SAS3 Expanders - 1x LSI SAS3X28 expander chip
  • 3 x 80mm 4-pin PWM Cooling Fans
  • 7 x Low-profile Expansion Slots
Manufacturer: Supermicro
Mfg P/N: CSE-826BE1C-R920LPB
Availability: Usually ships with 1-2 business days
$1,261.95Add
Supermicro SC835TQ-R920B 3U Rackmoun w/ 920W Redundant PSU (Black)
Manufacturer: Supermicro
Mfg P/N: CSE-835TQ-R920B
Availability: Lead time: 1 week
$861.25Add

CPU

Intel Xeon E5-2620 v4 8-Core 2.1GHz w/20MB LGA2011-3 CPU (BOX)
  • 8x Cores / 16x Threads / Turbo Boost: 3.0 GHz
  • QPI: 8 GT/s
  • Supported Memory: DDR4-1600/1866/2133 ECC
Manufacturer: Intel
Mfg P/N: BX80660E52620V4
Availability: Usually ships with 1-2 business days
$473.95Add
Intel Xeon E5-2630 v4 10-Core 2.2GHz w/25MB LGA2011-3 CPU (BOX)
  • 10x Cores / 20x Threads / Turbo Boost: 3.1 GHz
  • QPI: 8 GT/s
  • Supported Memory: DDR4-1600/1866/2133 ECC
Manufacturer: Intel
Mfg P/N: BX80660E52630V4
Availability: Usually ships with 1-2 business days
$718.75Add
