  1. Home
  2. Cases and Power

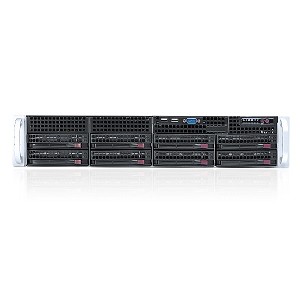

  3. Server Chassis - 2U
SKU: 990-11730B
  • Motherboard: E-ATX, ATX, micro-ATX
  • 8 x 3.5" Hot-swap SAS/SATA HD bays
  • 3 x 80mm 7K RPM Fans
  • 740W Platinum Redundant power supplies
Our Price: Login to see price
Availability: Usually ships within 1 week


Specifications

Technical Information
Motherboard Supported
  • ATX
  • EATX
    • Number of Fans Supported
    3
    Number of Fans Installed
    3
    Bays
    Number of External 3.5" Bays
    8
    Number of Internal 3.5" Bays
    2
    Number of Total Expansion Bays
    10
    I/O Expansions
    Number of Total Expansion Slots
    7
    Interfaces/Ports
    Total Number of USB Ports
    2
    Front USB
    Yes
    Power Description
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Number of Power Supplies Supported
    2
    Number of Power Supplies Installed
    2
    Power Supply Wattage
    740 W
    Redundant Power Supply
    Yes
    Physical Characteristics
    Color
    Black
    Compatible Rack Unit
    2U
    Form Factor
    Rack-mountable
    Height
    3.5"
    Depth
    25.5"

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

    • SuperChassis 825TQ-R740LPB (Black)
    • 1 x Sup 3x SAS / SATA hdd; SATA con
    • 1 x SATA SET OF 4-70/59/48/38CM ROUND S-RA, PBF
    • 2 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF
    • 1 x Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
    • 1 x SC825 24PIN REDUNDANT POWER DISTRIBUTOR
    • 1 x SC825/826/216/213 Intel DP X9,X8 PC air shroud 1368x13/12x13
    • 1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30
    • 1 x Black DVD dummy cover for SC825, 836
    • 3 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
    • 1 x Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
    • 1 x Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
    • 8 x Black 3.5" HDD tray
    • 2 x Black fixed 3.5
    • 1 x Rail set, quick/quick, default for 2,3U 17.2"W
    • 1 x LP Rear Window for SC825,825M,826,213,216

    Compatible Accessories

    Supermicro MCP-220-00043-0N 2.5" HDD in 4th generation 3.5" hot swap tray
    Manufacturer: Supermicro
    Mfg P/N: MCP-220-00043-0N
    Availability: Usually ships with 1-2 business days
