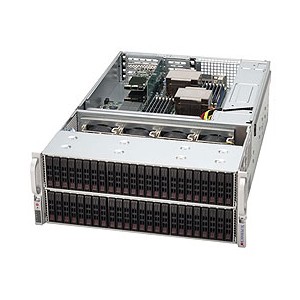

SKU: 990-11767D
  • 72 x 2.5" Hot-swap SAS/SATA Drive Bays
  • 1400W high-efficiency Redundant power supply with PMBus
  • 1 x Expander supports SAS2 (6Gb/s)
  • 4x full-height + 3x low-profile (UIO) expansion slots
  • For Supermicro UIO motherboards
Our Price: $2,400.25
List Price: $2,699.00 You save: $298.75
Availability: Usually ships within 1 week
Quantity:


Specifications

M/B Format
Supermicro UIO Motherboard
Processor Support
Supports dual, single Intel®/ AMD processors
Ext. Bay (s)
72 (48 front + 24 rear) 2.5" Hot-swap HDD bays
Cooling Fan (s)
7x 8cm (middle) Hot-swap cooling fans, redundant cooling
Expansion Slots
  • 4x Full Height
  • 3x Low-profile
  • Power Supply
    2x Redundant (1+1) 1400W Gold Level
    Dimensions
    7" (H) x 17.2" (W) x 27.5" (D)
    Form Factor
    Rack-mountable - 4U
    Max Mainboard Size
    Extended ATX
    Supported Mainboards
    Supermicro UIO
    Hot-Swap Bays Qty
    72
    Server Swappable Drive Interface
    SATA/SAS
    Built-in Devices
    LED panel
    Width
    17.2 in
    Depth
    27.5 in
    Height
    7 in
    Color
    Black
    Cooling System
    80 mm fan x 7
    System Cabinet Features
    Chassis intrusion detection, low profile rear window
    Expansion / Connectivity
    Expansion Bays
    72 (total) / 72 (free) x hot-swap - 2.5"
    Expansion Slot(s)
    7 expansion slot - low-profile
    Miscellaneous
    Included Accessories
    Mounting rails, air shroud
    Compliant Standards
    CE, UL, TUV, cUL, EN 60950, IEC 60950, FCC, 80 PLUS Gold
    Power
    Power Device
    Power supply
    Power Capacity (of Single Unit)
    1400 Watt
    Voltage Required
    AC 120/230 V ( 50 - 60 Hz )
    Power Provided
    1400 Watt
    Environmental Parameters
    Min Operating Temperature
    50 °F
    Max Operating Temperature
    95 °F
    Humidity Range Operating
    8 - 90%

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

    • Supermicro 4U CSE-417E16-R1400UB
    • 3x BPN-SAS2-216EL2 Backplane
    • 2x 1400W 1U Gold Level PSU w/ PM Bus
    • 1x Air Shroud
    • 1x 16-pin control panel converter cable
    • 2x 6f US power cord
    • 7x 10.5" 4-pin middle fan power extension
    • 1x round 16-to-16pin ribbon cable
    • 72x 2.5" hot-swap HDD trays
    • 1x Rail set
    • 7x 80mm middle fan with housing
    • 7x 80mm PWM fan with housing
    • UIO riser card bracket
