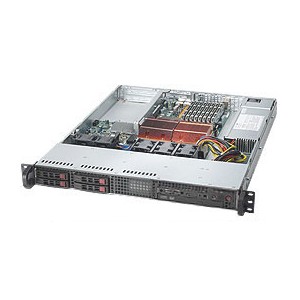

Supermicro CSE-111TQ-563UB SC111TQ-563UB 1U Rackmount w/ 560W PSU (Black)

Supermicro SC111TQ-563UB 1U Rackmount w/ 560W PSU (Black) - (Discontinued)

Support: (408) 503-8000

Supermicro SC111TQ-563UB 1U Rackmount w/ 560W PSU (Black) - (Discontinued)

SKU:	990-11703E

Motherboard: E-ATX, ATX, micro-ATX
4 x 2.5" Hot-swap SAS/SATA HD bays
Fans: 3 x 40mm installed
560W AC power supply w/ PFC
Supports UIO motherboard

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: WD Red SN700 PCIe 3.0 x4 NVMe M.2 2280 SSD - 2TB

: WD Red SN700 PCIe 3.0 x4 NVMe M.2 2280 SSD - 1TB

: AMD EPYC 9105 8-Core 3.95GHz 64MB Cache CPU (Tray)

Supermicro's SC111 1U chassis is a cost effective, short depth, 2.5" HDD 1U chassis solution. It has four hot-swap 2.5" SAS/SATA HDD trays coupled with Supermicro's advance design 560W high-efficiency power supply.

560W high-efficiency power supply 80 PLUS, Gold Level Certified
4 x Hot-swap 2.5" SAS / SATA HDD trays
2 x Full-height & 1 x Low-profile AOC expansion slot
3 x 40x56mm 4-pin PWM fans
Supports UIO motherboard sizes of 12" x 13"

Description

560W high-efficiency power supply 80 PLUS, Gold Level Certified
4 x Hot-swap 2.5" SAS / SATA HDD trays
2 x Full-height & 1 x Low-profile AOC expansion slot
3 x 40x56mm 4-pin PWM fans
Supports UIO motherboard sizes of 12" x 13"

Specifications

M/B Format

Supermicro UIO motherboard: 12" x 13"

Processor Support

Supports single, dual Intel Xeon processor 5500/5600 Series / AMD Opteron processors

Ext. Bay (s)

4 x 2.5" SAS / SATA Hot-swap Drive Bays

Cooling Fan (s)

3 x 40x56mm 4-pin PWM fans

Expansion Slots

2 x Full-height
1 x Low-profile

Power Supply

560W AC power supply w/ PFC

Dimensions

16.8" x 1.7" x 21.95" (W x H x D)

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.

Package Contents

SuperChassis SC111TQ-563UB Rackmount Enclosure
1 x Backplane - 4x2.5" SAS/SATA
1 x SC111 Intel DP X8.X7 Mylar Air Shroud, 12x13MB
1 x Accessory Box (For SC111 Chassis With One Power Cord)
1 x Front control Cable 20-pin to 20-pin ( With Tube,50cm)
1 x HDD Power Cable (Big 4-pin, 32cm)
1 x Black DVD Dummy Cover
1 x Black USB or FDD Dummy Cover
4 x Black Hot-swap 2.5" SAS/SATA HDD tray
1 x Fan Holder (3x 40x56)
1 x Rail Set, Quick/screw (Default for 1U 16.8" With SC111)
1 x Rear Window
