SKU: 850-11766F
  • 1x SP6 AMD EPYC 8004 Series
  • Max 576GB DDR5 4800MHz ECC Reg (6 DIMMs)
  • 10x 2.5" bays - Hot Swap
  • Broadcom BCM57416 10GBase-T
  • Integrated IPMI 2.0 with KVM and Dedicated LAN
Our Price: Login to see price
Availability: Usually ships within 1 week


Specifications

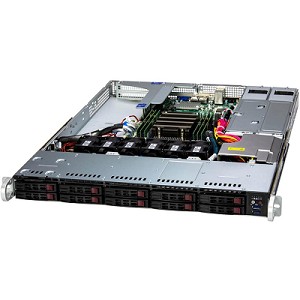

Server Case Form Factor
  • 1U
  • 17.2" x 25.6" x 1.7""
Processor
  • AMD EPYC 8004 Series Processor
  • Single (Not Included)
Chipset
System on Chip
Bios
AMI 32MB SPI Flash EEPROM
Type of Memory Supported
DDR5-4800 ECC Registered RDIMM
Maximum Memory Supported
576GB
Number of Memory Slots
6
Slots
  • 2 x PCIe 5.0 x16 FHFL slots
  • 1 x PCIe 5.0 x16 LP slot
Rear I/O Ports
  • 4 x USB 3.0
  • 1 x VGA
  • 2 x RJ45 LAN
  • 1 x Dedicated IPMI LAN
  • 1 x serial port
Video
ASPEED AST2600 BMC
LAN
  • Broadcom BCM57416 10GBase-T
  • Realtek RTL8211F PHY
Ext. Drive Bays
10 x hot-swap 2.5" SATA
Power
2 x 860W Redundant Titanium Level (96%) power supplies
Motherboard Manufacturer
Supermicro H13SVW-NT
Manageability
IPMI (Intelligent Platform Management Interface) v 2.0 with KVM support

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Compatible Accessories

Cooling

AMD EPCY 8024P 8-Core 2.4GHz 32MB Cache CPU (Tray)
  • 8-cores / 16-threads
  • Base Clock: 2.4 GHz / Max Boost Clock: 3.0 GHz
  • Socket Count: 1P
  • TDP: 90W
Manufacturer: AMD
Mfg P/N: 100-000001136
Availability: Temporarily out of stock
AMD EPCY 8124P 16-Core 2.45GHz 64MB Cache CPU (Tray)
  • 16-cores / 32-threads
  • Base Clock: 2.45 GHz / Max Boost Clock: 3.0 GHz
  • Socket Count: 1P
  • TDP: 125W
Manufacturer: AMD
Mfg P/N: 100-000001135
Availability: Usually ships with 1-2 business days
AMD EPCY 8224P 24-Core 2.55GHz 64MB Cache CPU (Tray)
  • 24-cores / 48-threads
  • Base Clock: 2.55 GHz / Max Boost Clock: 3.0 GHz
  • Socket Count: 1P
  • TDP: 160W
Manufacturer: AMD
Mfg P/N: 100-000001134
Availability: Temporarily out of stock
AMD EPCY 8324P 32-Core 2.65GHz 128MB Cache CPU (Tray)
  • 32-cores / 64-threads
  • Base Clock: 2.65 GHz / Max Boost Clock: 3.0 GHz
  • Socket Count: 1P
  • TDP: 180W
Manufacturer: AMD
Mfg P/N: 100-000001133
Availability: Temporarily out of stock

Memory

Kingston 16GB DDR5-4800 ECC Reg CL40 1Rx8 288-pin RDIMM
  • PC5-38400
  • Single-rank x8
  • ECC RDIMM
Manufacturer: Kingston
Mfg P/N: KSM48R40BS8KMM-16HMR
Availability: Usually ships same day
Kingston 32GB DDR5-4800 ECC Reg CL40 2Rx8 288-pin RDIMM
  • PC5-38400
  • Dual-rank x8
  • ECC RDIMM
Manufacturer: Kingston
Mfg P/N: KSM48R40BD8KMM-32HMR
Availability: Usually ships same day
Kingston 64GB DDR5-4800 ECC Reg CL40 2Rx4 288-pin RDIMM
  • PC5-38400
  • Dual-rank x4
  • ECC RDIMM
Manufacturer: Kingston
Mfg P/N: KSM48R40BD4TMM-64HMR
Availability: Usually ships with 1-2 business days
