SKU: 910-17495
  • A single 10/100 Mbps compatible RJ45 Ethernet port
  • Full and half duplex support
  • Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
  • Supports optional Boot ROM (Realtek RTL8139D Compatible Boot ROM required)
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Interfaces/Ports
Host Interface
PCI
Number of Ports
1
Interfaces/Ports
1 x RJ-45
Network & Communication
Network Technology
10/100Base-TX
Physical Characteristics
Form Factor
Internal
Warranty
Standard Warranty
Lifetime Limited
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
ST100SLP
Manufacturer Website Address
www.startech.com
Brand Name
StarTech.com
Product Type
Fast Ethernet Card
Media & Performance
Twisted Pair Cable Standard
Category 5
Management & Protocols
Protocols
  • Ethernet
  • Fast Ethernet
  • CSMA/CD
  • TCP/IP
    • Memory
    Boot ROM/PROM
    Supports enhanced smart remote Boot ROM (optional) (BOOTPROM100S)
    Controls/Indicators
    Status Indicators

    Two LEDs to indicate network link/activity and 10/100Mbps selection

    Environmental Conditions
    Temperature
    32°F (0°C) 131°F (55°C) Operating
    Humidity
    10% to 90% Non-condensing Operating
    Miscellaneous
    Additional information

  • Built-in FIFO buffers to eliminate external memory.
  • Auto-setups IRQ and I/O address.
  • Supports early interrupt on transmit to increase performance.
  • IRQ: Assigned by system
  • I/O Address: Assigned by system

    • System Requirements
    OS Required:

  • UNIX
  • Microsoft Windows 95/98
  • Novell NetWare 3.x
  • Novell NetWare 4.x
  • Linux
  • Microsoft Windows NT
  • Microsoft LAN Manager

    • Compatibility

    Plug and Play

    Drivers:

  • ODI driver for NetWare 3.x/4.x
  • NDIS driver for LAN Manager
  • Windows 95
  • Windows 98
  • Windows NT
  • Packet Driver for TCP/IP software

    • Platform Support
    PC

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: Limited Lifetime Warranty
    • Warranty Provider: StarTech
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact StarTech at (519) 455-4931
    • Technical Support: StarTech (519) 455-4931

    Package Contents

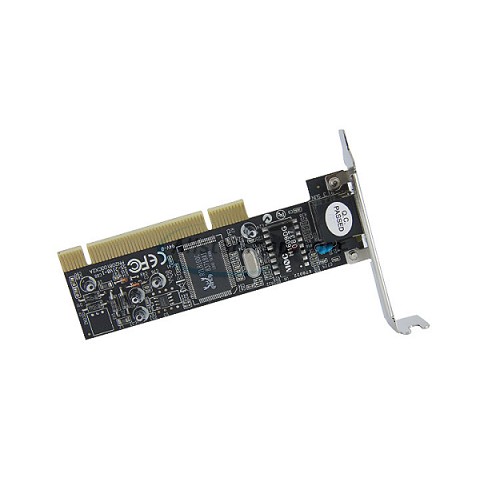

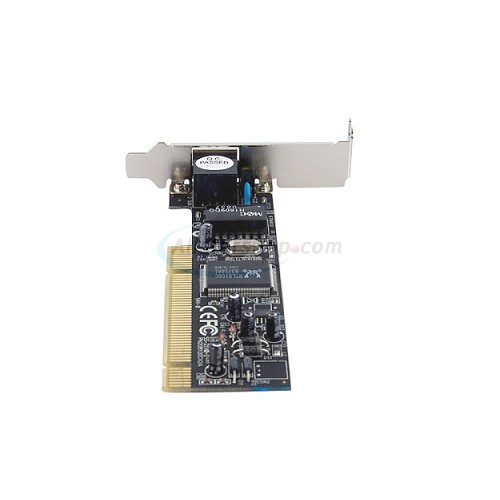

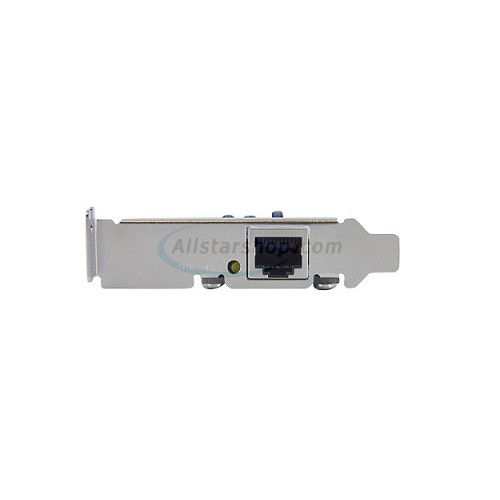

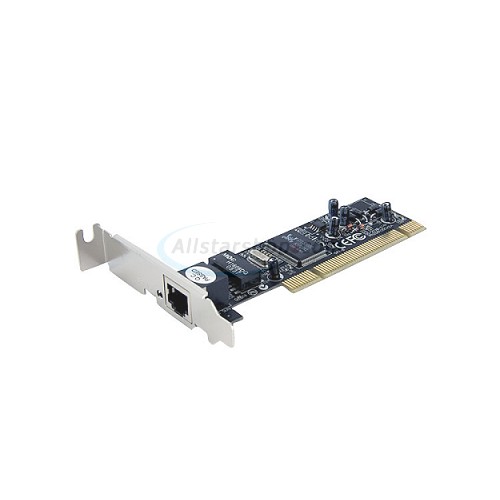

    • StarTech 1 Port Low Profile PCI 10/100 Ethernet Network Adapter Card
