SKU: 910-17496
  • A single 10/100/1000Mbps compatible RJ45 Ethernet port
  • Full and half duplex support
  • Supports Wake-on-LAN function
  • Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
Our Price: $11.50
List Price: $13.99 You save: $2.49
Availability: Usually ships within 1-2 business days
Quantity:


Specifications

Interfaces/Ports
Host Interface
PCI
Number of Ports
1
Interfaces/Ports
1 x RJ-45
Network & Communication
Network Technology
10/100Base-TX
Physical Characteristics
Form Factor
Internal
Dimensions
5.66" Height x 2.48" Width
Warranty
Standard Warranty
Lifetime Limited
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
ST1000BT32
Manufacturer Website Address
Brand Name
StarTech.com
Product Type
Fast Ethernet Card
Management & Protocols
Protocols
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • CSMA/CD
  • Controls/Indicators
    Status Indicators

  • 10Mbits/sec Link/Activity
  • 100Mbits/sec Link/Activity
  • 1000Mbits/sec Link/Activity

  • Environmental Conditions
    Temperature
    32°F (0°C) to 131°F (55°C) Operating
    Miscellaneous
    Additional information

  • Ideal solution for fast 10/100/1000 Mbits/sec Ethernet connectivity
  • Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion
  • Supports PCI 2.1 Wake ON LAN function
  • IRQ Line & I/O Address: Allocated by system

  • Compatibility

  • Plug-and-Play

    Support Drivers:

  • Windows 98SE/Me/NT/2000/XP
  • Netware Server 5.x
  • Netware ODI for DOS Linux and Unix

  • Certifications & Standards

  • FCC Class B & CE Mark C-tick
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1Q

  • Platform Support
    PC

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    • Warranty Length: Limited Lifetime Warranty
    • Warranty Provider: StarTech
    • Service Contact:
      1. First 30-day from invoice date: Allstarshop On-line RMA Request
      2. After 30-day from invoice date: Contact StarTech at (519) 455-4931
    • Technical Support: StarTech (519) 455-4931

    Package Contents

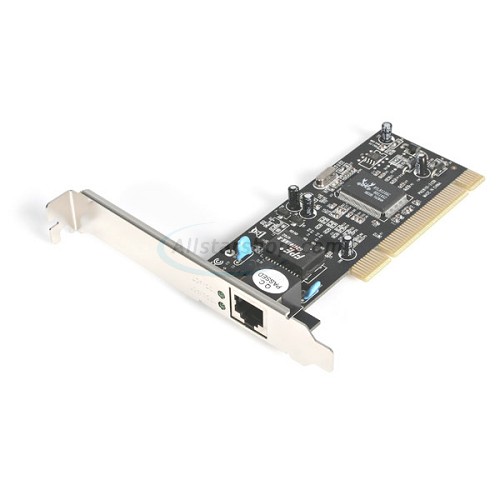

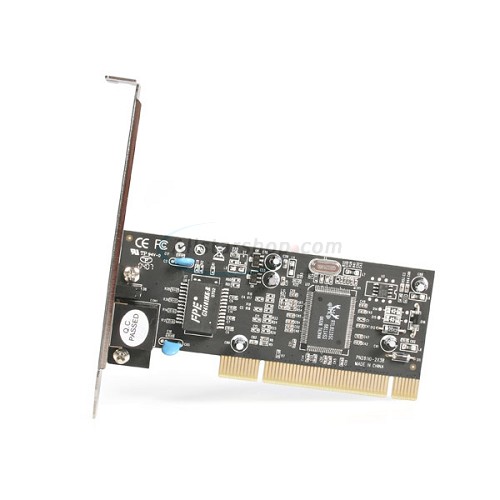

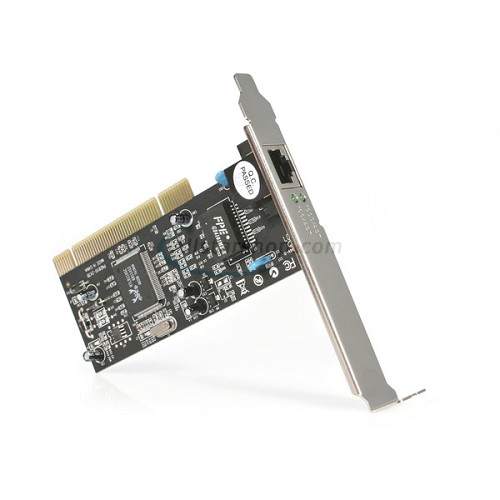

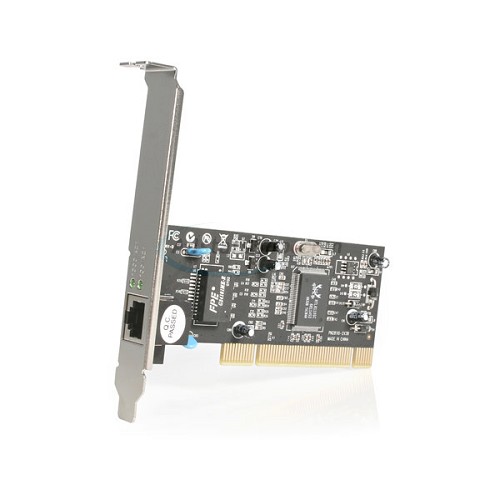

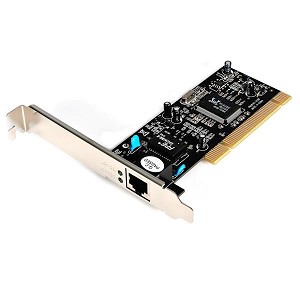

    • StarTech 1 Port PCI 32 Bit Gigabit Ethernet Network Adapter Card
