SKU: 850-00G30E
  • Intel G45/ICH10 chipset
  • Max: 16GB/ 4x DDR2 667/800 DIMM
  • Intel GMA X4500HD - VGA/HDMI (HDMI-to-DVI adapter included)
  • 6x USB 2.0/ 1x 1394/ 3x eSATA
  • 2 x 3.5-in / 1 x 5.25-in bay / 300W PSU
Our Price: Login to see price
Discontinued - Not orderable


Specifications

Processor
  • LGA775 socket for Intel Core2 Quad / Core2 Duo / Dual-Core Pentium / Celeron 400 Processors
  • 1066/800/533 MHz FSB
  • Processor Not Included
Chipset
  • North Bridge: Intel G45
  • South Bridge: ICH10
Type of Memory Supported
240-pin DDR2 800/667 DIMMs
Maximum Memory Supported
16 GB
Number of Memory Slots
4
Slots
  • 1 x PCI-Express X16
  • 1 x PCI
I/O Ports
    Front-panel I/O:
    • 2 x USB 2.0 ports
    • 1 x eSATA port
    • Microphone port
    • Headphone port
    • Power button
    • Reset button

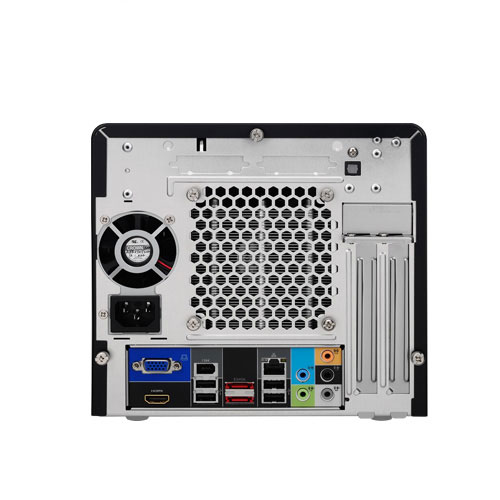

    Rear-panel I/O:
    • 4 x USB 2.0 ports
    • 1 x RJ45 Gb LAN port
    • 2 x External SATA ports
    • 1 x HDMI port
    • 1 x VGA port
    • 1 x IEEE 1394 port
    • 8-channel audio out
    • S/PDIF Optical out port
    • CMOS Reset button
Audio
Realtek ALC888DD 7.1 channel
Video
Intel Graphics Media Accelerator X4500HD
LAN
Marvell 88E8056 Gigabit Ethernet controller
EIDE/Serial ATA
  • 1 x UltraDMA 100/66/33 channel
  • 3 x SATA 3.0Gb/s Internal
  • 3 x SATA 3.0Gb/s External
RAID
No
USB Port (s)
    Up to 6 USB 2.0 ports:
    • 2 x USB 2.0 ports on Front Panel I/O
    • 4 x USB 2.0 ports on Back Panel I/O
IEEE 1394
1 x IEEE 1394 port on Back Panel
Ext. Drive Bays
1 x 5.25
Int. Drive Bays
2 x 3.5"
Power
300W PSU with active PFC
Dimensions
310 mm x 200 mm x 185 mm (L x W x H)

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 1 year
  • Warranty Provider: Shuttle
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact Shuttle at 626-820-9000
  • Technical Support: Shuttle 626-820-9000

Package Contents

  • Barebone unit
  • XPC DVD Driver
  • XPC Quick Installation Guide
  • FDD cable
  • CD-ROM Cable(pre-install)
  • SATA cable(pre-install)
  • HDMI to DVI converter cable
  • Power cord
