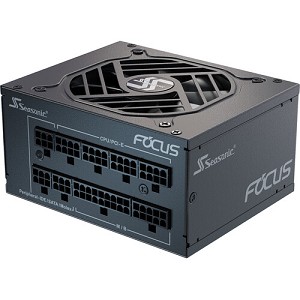

Seasonic Focus SGX-650 (2021) 80+ Gold SFX Power Supply

Seasonic Focus SGX-650 (2021) 80+ Gold SFX Power Supply - Fully Modular

Support: 626 969-9966

Seasonic Focus SGX-650 (2021) 80+ Gold SFX Power Supply - Fully Modular

SKU:

992-82135

Efficiency 90% - 80 PLUS Gold
4 x 6+2 pin PCI-E Connectors
10-year Warranty / MTBF: 100,000 hours
Dimensions: 100 x 125 x 63.5mm / SFX-to-ATX Bracket included

Our Price:	Login to see price
Availability:	Temporarily out of stock

What's New

: Gigabyte GeForce RTX 4070 Ti Super WINDFORCE OC 16G PCIe 4.0 Video Car

: PNY GeForce RTX 4080 Super 16GB OC LED TF VERTO PCIe 4.0 Video Card

: Asus TUF Gaming GeForce RTX 4080 Super 16GB GDDR6X PCIe 4.0

The Seasonic's FOCUS SGX (2021) is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SGX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.

Description

Specifications

Efficiency

80 PLUS Gold certified

Fans

92mm

MTBF

100,000 hours

Protection

OPP, OVP, UVP, OCP, OTP, SCP

Version Support

Intel SFX 12V / ATX 12V

Current

10 - 5 A

Frequency

50 Hz - 60 Hz

Output Power

Output Voltage	Output Current
+3.3V	20A
+5V	20A
+12V	54A
-12V	0.3A
+5VSB	3A

Output Voltage

650W

Input Voltage

100V - 240V

Connectors

1 x 20+4-Pin ATX Motherboard
2 x 4+4-Pin EPS CPU
2 x 6+2-Pin PCIe
3 x SATA
3 x Peripheral (4P)

Dimensions

100mm x 125mm x 63.5mm (L x W x H)

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 10 years
Warranty Provider: Seasonic
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Seasonic at 626 969-9966 Or visit Seasonic customer service online.
Technical Support: Seasonic 626 969-9966 or visit Seasonic technical support online.

Package Contents

Seasonic Focus SGX-650 (2021) Power Supply
1 x MB (24/20 pins) 350mm cable
1 x CPU (8/4 pins) 400mm cable
2 x PCIe 2x (8/6 pins) 500mm cable
2 x 3x SATA 600mm cable
1 x 3x Molex 470mm cable
