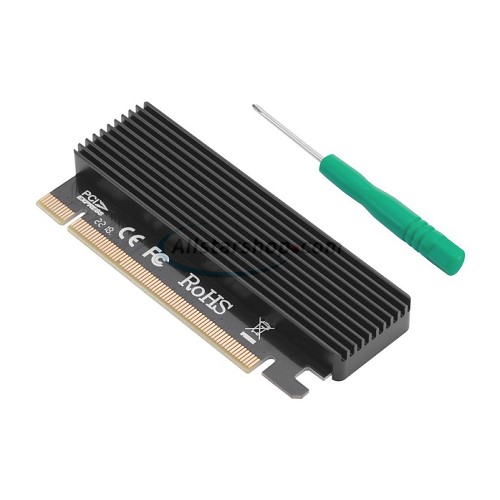

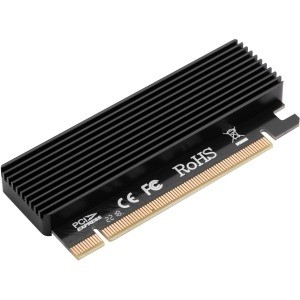

SIIG SC-M20211-S1 Full Speed M.2 NVMe SSD to PCIe Adapter with Heatsink

SIIG Full Speed M.2 NVMe SSD to PCIe Adapter with Heatsink

SKU:

A323478

Support 2230/2242/2260/2280 M.2 PCIe SSD
Fits into PCIe x16 slot

Our Price:	Login to see price
Availability:	Temporarily out of stock

What's New

: Gigabyte GeForce RTX 4070 Ti Super WINDFORCE OC 16G PCIe 4.0 Video Car

: PNY GeForce RTX 4080 Super 16GB OC LED TF VERTO PCIe 4.0 Video Card

: Asus TUF Gaming GeForce RTX 4080 Super 16GB GDDR6X PCIe 4.0

Adds one M.2 M key PCIe SSD (NVMe or AHCI) to your PCIe equipped desktop computer .

Adds one M.2 M key PCIe SSD (NVMe or AHCI) to your PCIe equipped desktop computer to dramatically increase speed and performance.
Note: This adapter is not compatible with B key M.2 PCIe NVMe/AHCI SSDs or M.2 SATA SSDs

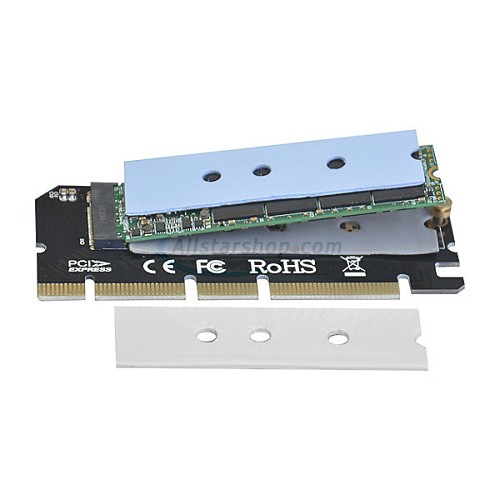

Accommodates 2230, 2242, 2260 and 2280 form factor M.2 PCIe SSDs (NVMe or AHCI) via multiple mounting holes

Compatible with PCIe 3.0 specification and backward compatible with PCIe 1.0 and PCIe 2.0

Fits into PCIe x16 bus slot

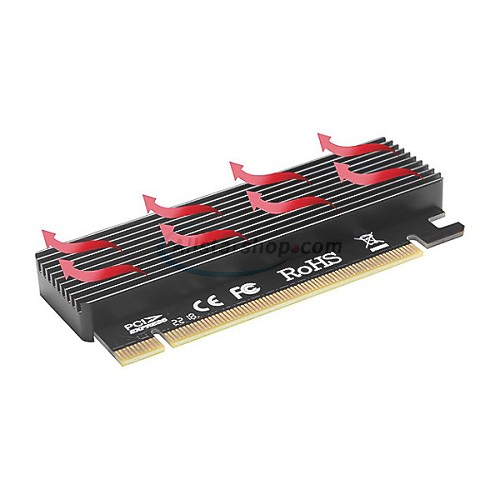

Includes heat sink and silicone pad to avoid overheating and thermal throttling, improves your computer's performance and keeps the adapter working efficiently

Plug and Play compliant with no driver installation required

Description

Adds one M.2 M key PCIe SSD (NVMe or AHCI) to your PCIe equipped desktop computer .

Adds one M.2 M key PCIe SSD (NVMe or AHCI) to your PCIe equipped desktop computer to dramatically increase speed and performance.
Note: This adapter is not compatible with B key M.2 PCIe NVMe/AHCI SSDs or M.2 SATA SSDs

Accommodates 2230, 2242, 2260 and 2280 form factor M.2 PCIe SSDs (NVMe or AHCI) via multiple mounting holes

Compatible with PCIe 3.0 specification and backward compatible with PCIe 1.0 and PCIe 2.0

Fits into PCIe x16 bus slot

Includes heat sink and silicone pad to avoid overheating and thermal throttling, improves your computer's performance and keeps the adapter working efficiently

Plug and Play compliant with no driver installation required

Specifications

Physical Characteristics

Color

Black

Height

0.4"

Depth

4.1"

Weight (Approximate)

1.76 oz

Miscellaneous

Additional information

PCIe 3.0 compliant
Comes with heat sink and silicone pad to prevent your SSD from overheating
Bus type: PCI Express x16 (PCIe x16)
SSD type (not included): M.2 M key PCIe SSD (NVMe or AHCI)
Compatible drive length: 30 / 42 / 60 / 80 (mm)
Connector:
- Host bus connector: PCI Express x16
- SSD: M.2 connector (M key)
Environmental conditions:
- Operating temperature: 32 to 122 degrees F
- Storage temperature: 14 to 140 degrees F
- Relative humidity: 10% to 90% RH (non-condensing)

Certifications & Standards

Environmentally Friendly

Yes

Environmental Certification

RoHS

WEEE

Country of Origin

Taiwan

TAA Compliant

Yes

Warranty

Limited Warranty

2 Year

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 2 years
Warranty Provider: SIIG
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact SIIG at
Technical Support: SIIG

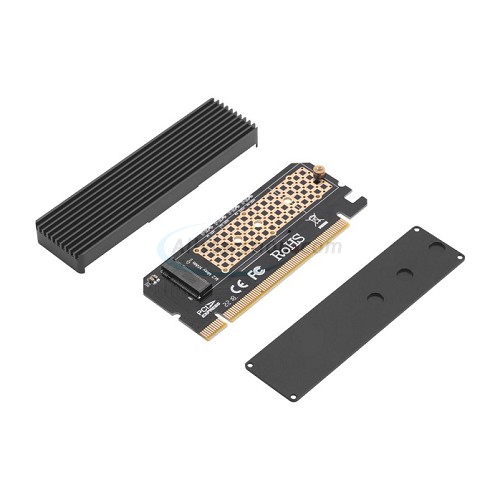

Package Contents

Full Speed M.2 NVMe SSD to PCIe Adapter with Heatsink
3 x Silicone Pad
Screw Driver
Quick start guide
