SKU: A322063
  • Supports 1080p and up to 4Kx2K PC resolution
  • Supports HDMI Deep Color & full 3D
  • Supports Auto EDID
Our Price: Login to see price
Discontinued - Not orderable


Specifications

General Information
Brand Name
SIIG
Manufacturer
SIIG, Inc
Manufacturer Part Number
CE-H21Q11-S1
Packaged Quantity
1
Product Name

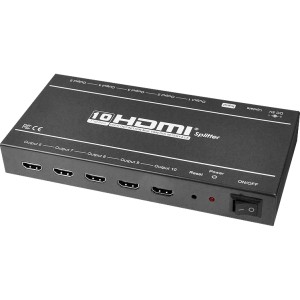

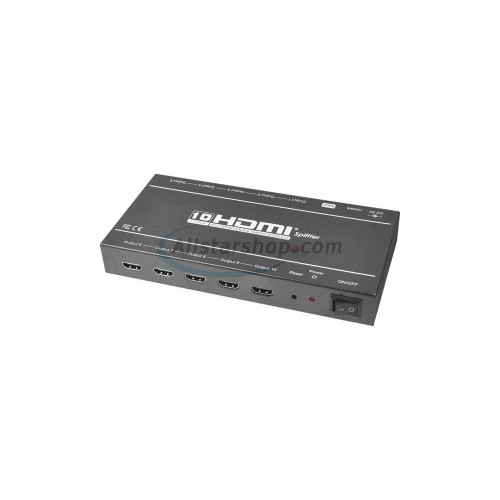

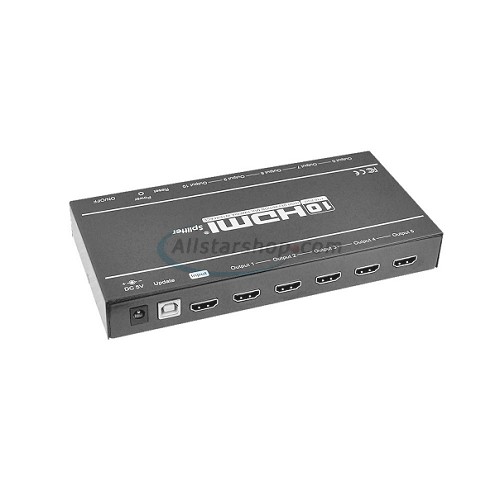

1x10 HDMI Splitter with 3D and 4Kx2K
Product Type
Signal Splitter
Interfaces/Ports
HDMI In
Yes
HDMI Out
Yes
Number of HDMI Inputs
1
Number of HDMI Outputs
10
USB
Yes
Miscellaneous
Additional information
  • Compliant with HDMI and HDCP standards
  • Supports resolution 480i, 480P, 576i, 720p, 1080i, 1080p, 4Kx2K
  • Wide frequency range: 25MHz to 340MHz
  • Video bandwidth: 10.2Gbps
  • Audio support: Standard, DSD and HD (HBR)
  • Input TMDS signal: 1.2V (peak-to-peak)
  • Input DDC signal: 5V (peak-to-peak, TTL)
  • Transmission distance: up to 20 meters (5m input, 15m output)
  • Power LED indicator
Country of Origin
China
Green Compliance Certificate/Authority
RoHS
Green Compliant
Yes
Physical Characteristics
Depth
1.1"
Height
3.8"
Material
Metal
Weight (Approximate)
15.20 oz
Warranty
Limited Warranty
3 Year

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

  • Warranty Length: 3 years
  • Warranty Provider: SIIG
  • Service Contact:
    1. First 30-day from invoice date: Allstarshop On-line RMA Request
    2. After 30-day from invoice date: Contact SIIG at
  • Technical Support: SIIG

Package Contents

  • 1x10 HDMI Splitter with 3D and 4Kx2K
  • Power Adapter
  • 4 x Housing Rubber Pads
  • User's Manual
