Interfaces/Ports

4 x 10Base-T LAN

1 x 10Base-T WAN

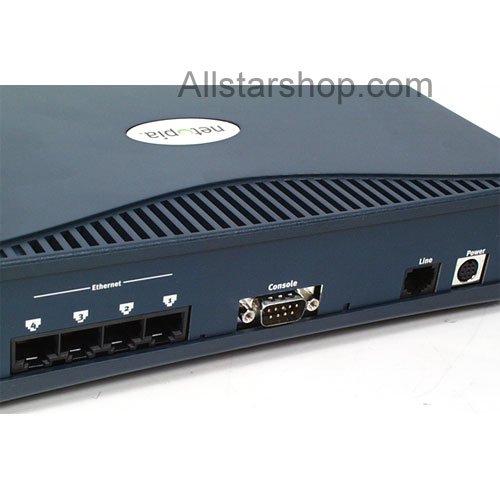

Interfaces/Ports Details

4 x RJ-45 10Base-T Port(s) LAN

1 x RJ-45 10Base-T Port(s) WAN

1 x DB-15 Console Port(s)

Connectivity Media

Twisted Pair 10Base-T

Data Transfer Rate

10Mbps Ethernet

Expansion Slots

Not Applicable

Modules

Not Applicable

Management

- Management Security: Password-protected with up to 4 user names and passwords.
- Easy Setup: Menu-driven console screens step through required configuration of basic parameters.
- Dynamic Host Configuration Protocol (DHCP) Server, (RFC 2131), DHCP Client, (RFC 2131), and DHCP Relay Agent (RFC 1542); as DHCP server, supports up to 8 different pools of IP addresses (one per subnet) with a maximum of 512 addresses.
- Firmware: Upgrade firmware in flash memory via TFTP or XModem transfer using modem or direct cable connection; configuration retained with upgrades; battery backup to protect configuration across power failures.
- ICMP Ping: Tests IP connectivity from router to local or remote site.
- Trace Route: Determines routing path to particular host name or IP address, includes DNS lookup.
- Trivial File Transfer Protocol (TFTP) Client (RFC 1350): Modem allows remote upload and download of firmware and configuration files directly to the router.
- Telnet Client: Provides remote management access to Telnet hosts on the LAN or WAN.
- Syslog Client: Records ongoing activity log to a remote syslog server.
- Event Logging: Maintains ongoing log of up to 128 WAN and device events, date and time stamped, saved across reboot.
- LAN Statistics: Collects statistics for transmit and receive packets, bytes, and errors.
- SNMP v1: (RFC 1157) and MIB II (RFC 1213), Ethernet MIB and enterprise MIB for remote management using console applications.
- Command Line Interface (CLI): For automated configuration of basic connectivity parameters.
- Text-based Configuration: Enables configuration files to be uploaded remotely via TFTP.
- Two-user License of Timbuktu Pro software for remote desktop support included with equipment registration.

Protocols

PPP

TCP/IP

SNMP

DHCP

NAT

PAP

TFTP

Telnet

ICMP

Security

Memory

4MB DRAM

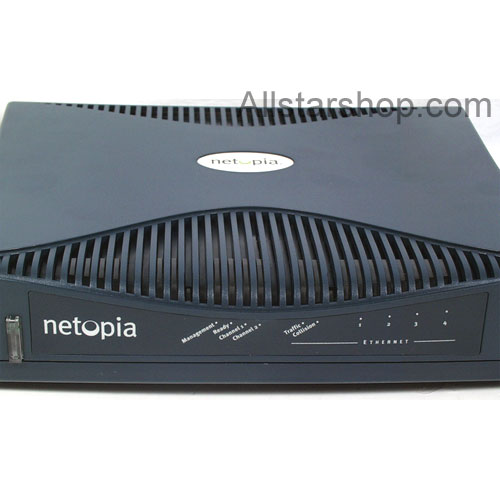

Status Indicators

- Diagnostic lights for at-a-glance management of Ethernet, WAN, and power connections

Input Voltage

100 V AC to 240 V AC

Frequency

50 Hz or 60 Hz

Temperature

32 °F (0 °C) to 104 °F (40 °C) Operating

32 °F (0 °C) to 158 °F (70 °C) Storage

0 °C (32 °F) to 70 °C (158 °F) Operating

Humidity

20% to 80% Non-condensing Operating

Color

Black

Form Factor

Desktop

Dimensions

2.25" Height x 9.45" Width x 7.95" Depth

Shipping Dimensions

4.75" Height x 12.44" Width x 14.85" Depth
