Your office network gets gigabit speed to burn with NETGEAR's GS516T 10/100/1000 Mbps Gigabit Switch! Its 16 ports send data at scorching speeds – up to 2000 Mbps per port in full-duplex mode, and every port also features 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink™, making this unmanaged, rack-mountable switch ideal for combining 10, 100, and 1000 Mbps devices. Users can take advantage of the GS516's ability to deliver large amounts of multimedia, image, and video information in no time at all. It's invaluable as a robust and reliable network backbone for your 50- to 250-employee company.

ACCESSIBLE
Plenty of bandwidth for all users, with 16 switched 10/100/1000 ports for PCs, servers,or switches.

SMART
All 16 ports provide automatic speed and duplex sensing, plus Auto Uplink™ to adjust for straight-through or crossover cables and make the right link.

EFFICIENT
Each port delivers network speeds of up to 2000 Mbps per port.

STRAIGHTFORWARD
Easy to set up and easy to use. All ports feature integrated LEDs, so network monitoring couldn't be easier.

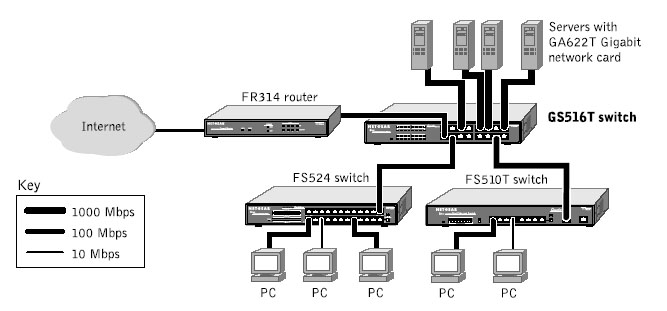

A Sample Application of the Netgear GS516T:


Technical Specifications

Network Ports:	10/100/1000 Mbps twisted-pair RJ-45 ports
Performance (64 byte packets):	Forward rate (1000 Mbps port): 1,480,000 packet per sec Forward rate (100 Mbps port): 148,000 packet per sec Forward rate (10 Mbps port): 14,800 packet per sec Latency (1000 to 1000 Mbps): 30 µs max MAC addresses: 8,000
Power Consumption:	70 W maximum
Standards Compliance:	IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3x Flow Control
Status LEDs:	Unit: power Per network port: link, activity, full duplex/collision
Physical Specifications:	W 330 mm (13”) D 207 mm (8.2”) H 43 mm (1.7”)
Environmental Specifications:	Operating Temperature: 0° to 40°C Operating Humidity: 90% maximum relative humidity, noncondensing
Safety Agancy Approvals:	UL listed (UL 1950)/cUL IEC950/EN60950 TUV EN 60950
Electromagnetic Compliance:	CE mark, commercial FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22), Class A, EN 50082-1, EN 55024, C-Tick
