Local and Remote Access

The SmartRack series comes with either a 116 switch for local access or with a 116 IP switch for combined local and remote access.

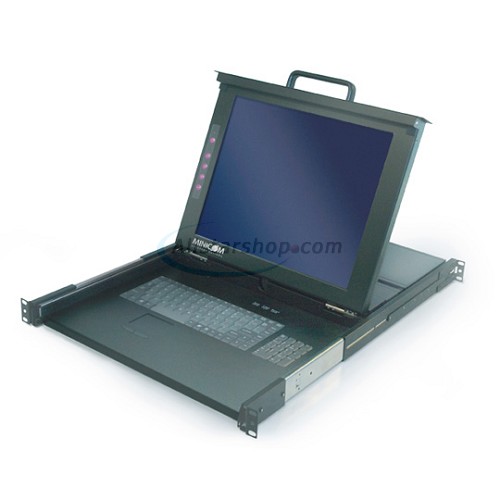

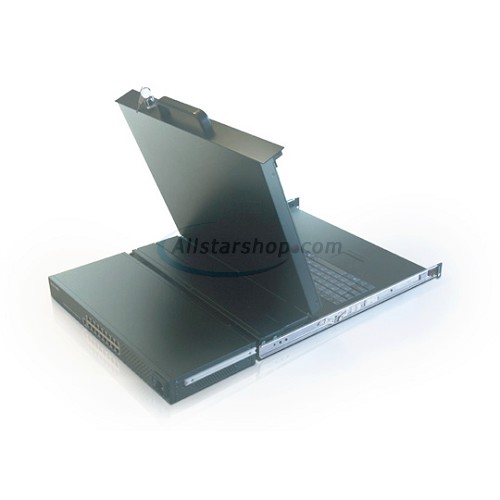

To access servers, just slide out the drawer and flip up its top to display the large, high resolution 17¡¨ TFT LCD display.

The display is (VGA/SVGA/XGA/SXGA compatible) with front-panel high-quality controls and Touchpad for easy adjustment.

It features triple layered security and plug-and-play installation.

Control More Servers

The SmartRack KVM switches are compatible with all major operating systems and can control any server¡¦s brand and model, regardless of the server condition and network connectivity, covering the entire spectrum of crash scenarios. Use the KVM switch to control up to 16 servers in multiple platforms (PS/2, USB). Minicom¡¦s innovative ROC technology has each computer/ server directly connected to the switch via a ROC using standard CAT5 cable at a distance of up to 30m/100ft in a star configuration.

Slim, 1U Solution that Saves Space

The SmartRack KVM switches are a single rail solution that occupies just 1U of rack space; it¡¦s the most efficient way to control your server rack.

SmartRack 116 IP Key features

The SmartRack 116 IP extends your KVM (keyboard, video, and mouse) from any computer or server over TCP/IP via LAN, WAN or Internet connection. Now you can control, monitor and manage up to 16 remote servers from wherever you are, inside or outside the organization. The SmartRack 116 IP is a cost-effective hardware solution, for secure remote KVM access & control of 16 computers/servers from the BIOS level - independent of the OS. One local analog or one remote digital IP user can access and control 16 multi-platforms (PS/2, USB) servers at a time.

Web-based control

Browser Control to a target server, from any location via secured standard IP connection.

Multi-user view mode

Allows simultaneous users to view remote sessions. Remote control can be intuitively handed between users with appropriate permissions.

Management system

Can be controlled by Minicom¡¦s Management system for centralized over-IP management of distributed data center locations.
