SKU: 800-14085A
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 192GB / 4x DDR5 DIMM / Up to 6600+(O.C.)
  • 4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
  • 1x USB 3.2 G2 (1x USB-C), 8x USB 3.2 G1, 6x USB 2.0
  • 1x PCIe 5.0 x16, 1x PCIe 3.0 x16, 3x PCIe 3.0 x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z790 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR5-6600+(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory
Maximum RAM
192GB
Back Panel I/O
  • 1 x USB 3.2 Gen 2x2 Type-C port
  • 4 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 3.0 x16 (Max x4)
  • 3 x PCIe 3.0 x1
Integrated SATA/SAS
4 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 22110/2280/2260/2242 supports PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2280/2260/2242 supports PCIe 4.0 x4 & SATA mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Realtek RTL8125BG 2.5Gb Ethernet
Integrated Wifi
Intel Wi-Fi 6E
USB
  • 1 x USB 3.2 Gen 2x2 Type-C port on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports via headers
  • 2 x USB 2.0 on Back Panel I/O
  • 4 x USB 2.0 via header
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

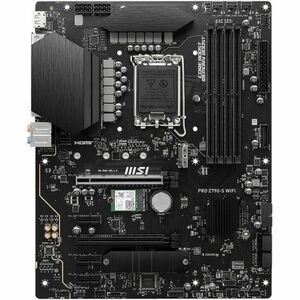

  • PRO Z790-S WIFI motherboard
  • Quick installation Guide
  • Driver DVD
  • I/O Shield
  • 2 x SATA cables
  • M.2 Screw / Standoff
  • Wi-Fi Antenna
  • Wi-Fi Bracket
