SKU: 800-14064E
  • Integrated Intel Graphics - HDMI / DisplayPort
  • Max 128GB / 4x DDR4 DIMM / Up to 5333(O.C.)
  • 7x SATA 6Gb/s, 5x M.2 / RAID 0, 1, 5, 10
  • 7x USB 3.2 G2 (3x USB-C), 4x USB 3.2 G1, 6x USB 2.0
  • 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
LGA1700 socket for 13th & 12th Generation Intel Core Processors
Number of Processor (s)
Single (Not Included)
Chipset
Intel Z790 chipset
System Bios
UEFI AMI BIOS
Video card slot
PCIe 5.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4-5333(O.C.) / 5133(O.C.) / 5066(O.C.) / 5000(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000 (O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 Non-ECC, Un-buffered Memory
Maximum RAM
128GB

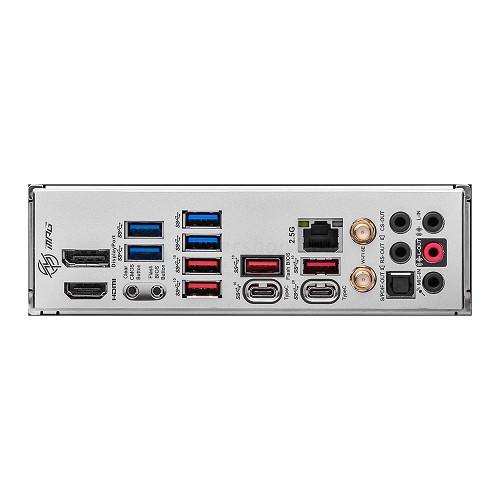

Back Panel I/O
  • 1 x USB 3.2 Gen2x2 Type-C port
  • 1 x USB 3.2 Gen2 Type-C port
  • 4 x USB 3.2 Gen2 Type-A ports
  • 4 x USB 3.2 Gen1 Type-A ports
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x RJ45 LAN
  • 1 x Audio I/O
  • 2 x Antenna connectors
Number of PCI/PCI-Express Slots
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (max x4)
  • 1 x PCIe 3.0 x1
Integrated SATA/SAS
7 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket, with M key, type 2260/2280/22110 supports PCIe 4.0 x4 mode
  • 2 x M.2 socket, with M key, type 2260/2280 support PCIe 4.0 x4 mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 & SATA mode
  • 1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4 mode
Integrated SATA/SAS RAID
RAID 0, 1, 5, 10
Integrated Audio
Realtek ALC4080 7.1 Surround Sound High Definition Audio CODEC
Integrated Video
Integrated Intel Graphics from processor
Integrated LAN
Intel 2.5Gb Ethernet
Integrated Wifi
Intel Wi-Fi 6E & Bluetooth v5.2
USB
  • 1 x USB 3.2 Gen2x2 Type-C port on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port via header
  • 4 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
  • 4 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via headers
  • 4 x USB 2.0 via headers
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Compatible Accessories

CPU

Intel Core i5-13600K 14-Core LGA1700 w/24MB cache CPU (BOX)
  • 14x Cores / 20x Threads / Turbo Boost: 5.10 GHz
  • P-core: 6 / Base: 3.5 GHz / Turbo: 5.1 GHz
  • E-core: 8 / Base: 2.6 GHz / Turbo: 3.9 GHz
  • Base: 125W / Max Turbo 181W
  • Intel UHD Graphics 770 / Heatsink/Fan Not Included
Manufacturer: Intel
Mfg P/N: BX8071513600K
Availability: Usually ships with 1-2 business days
Intel Core i7-13700K 16-Core LGA1700 w/30MB cache CPU (BOX)
  • 16x Cores / 24x Threads / Turbo Boost: 5.40 GHz
  • P-core: 8 / Base: 3.4 GHz / Turbo: 5.3 GHz
  • E-core: 8 / Base: 2.5 GHz / Turbo: 4.2 GHz
  • Base: 125W / Max Turbo 253W
  • Intel UHD Graphics 770 / Heatsink/Fan Not Included
Manufacturer: Intel
Mfg P/N: BX8071513700K
Availability: Usually ships with 1-2 business days
Intel Core i9-13900K 24-Core LGA1700 w/36MB cache CPU (BOX)
  • 24x Cores / 32x Threads / Turbo Boost: 5.80 GHz
  • P-core: 8 / Base: 3.0 GHz / Turbo: 5.4 GHz
  • E-core: 16 / Base: 2.2 GHz / Turbo: 4.3 GHz
  • Base: 125W / Max Turbo 253 W
  • Intel UHD Graphics 770 / Heatsink/Fan Not Included
Manufacturer: Intel
Mfg P/N: BX8071513900K
Availability: Temporarily out of stock

Memory

Kingston Fury Beast 16GB DDR4-3200 CL16 1Rx8 288-pin DIMM
  • PC4-25600
  • JEDEC: DDR4-2400 CL17-17-17 @ 1.2V
  • XMP 1: DDR4-3200 CL16-20-20 @ 1.35V
  • XMP 2: DDR4-3000 CL16-19-19 @1.35V
  • single-rank x8
Manufacturer: Kingston
Mfg P/N: KF432C16BB/16
Availability: Usually ships same day
Kingston Fury Beast 16GB DDR4-3600 CL18 288-pin DIMM
  • PC4-28800
  • XMP 1: DDR4-3600 CL18-22-22 @ 1.35V
  • XMP 2: DDR4-3000 CL16-18-18 @ 1.35V
  • JEDEC: DDR4-2400 CL17-17-17 @ 1.2V
Manufacturer: Kingston
Mfg P/N: KF436C18BB/16
Availability: Usually ships same day

SSD

Crucial P3 Plus 1TB NVMe PCIe 4.0 M.2 SSD
  • Sequential Read (up to): 5,000 MB/s / Write (up to): 3,600 MB/s
  • Endurance Rating: 220 TBW
  • Form Factor: M.2 22 x 80mm
Manufacturer: Crucial
Mfg P/N: CT1000P3PSSD8
Availability: Usually ships with 1-2 business days
WD Black SN770 PCIe 4.0 NVMe M.2 2280 SSD - 1TB
  • Sequential Read (up to): 5150 MB/s / Write (up to): 4900 MB/s
  • Random 4KB Read (up to): 740000 IOPS / Write (up to): 800000 IOPS
  • Endurance Rating: 600 TBW
  • MTBF: 1.75M hours
  • Form Factor: M.2 22 x 80mm
Manufacturer: Western Digital
Mfg P/N: WDS100T3X0E
Availability: Usually ships with 1-2 business days
WD_BLACK SN850X 1TB PCIe Gen4 NVMe x4 M.2 2280 SSD
  • Sequential Read (up to): 7,300MB/s / Write (up to): 6,300MB/s
  • Random Read (up to): 800K IOPS / Write (up to): 1,100K IOPS
  • Endurance Rating: 600 TBW
  • Form Factor: M.2 22 x 80mm
Manufacturer: Western Digital
Mfg P/N: WDS100T2X0E
Availability: Temporarily out of stock

Software

Microsoft Windows 11 Home 64-bit Full Edition License (OEM/1pk)
Manufacturer: Microsoft
Mfg P/N: KW9-00633
Availability: Usually ships with 1-2 business days
Microsoft Windows 11 Pro 64-bit Full Edition License (OEM/1pk)
Manufacturer: Microsoft
Mfg P/N: FQC-10529
Availability: Usually ships with 1-2 business days
