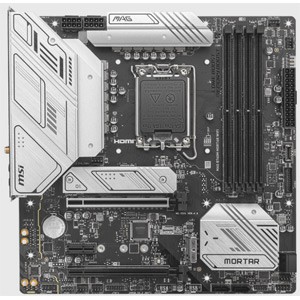

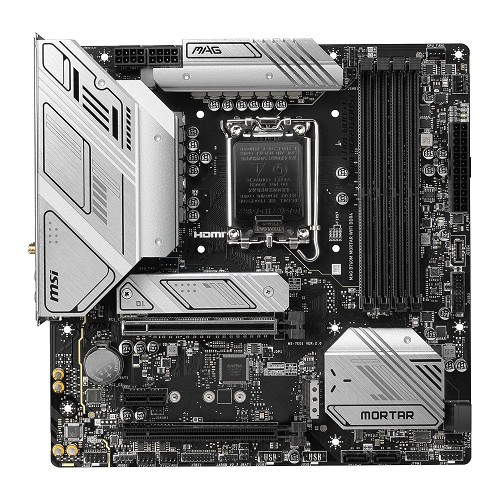

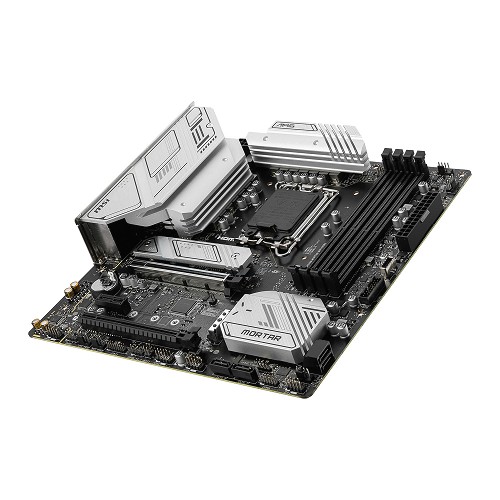

MSI MAG B760M MORTAR WIFI B760 LGA1700 mATX Motherboard - (Discontinued)

Support: (626) 913-0828

MSI MAG B760M MORTAR WIFI B760 LGA1700 mATX Motherboard - (Discontinued)

SKU:	800-14076E

Integrated Intel Graphics - HDMI / DisplayPort
Max 128GB / 4x DDR5 DIMM / Up to 7000(O.C.)+
4x SATA 6Gb/s, 2x M.2 / RAID 0, 1, 5, 10
5x USB 3.2 G2 (2x USB-C), 2x USB 3.2 G1, 8x USB 2.0
1x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1x PCIe 3.0 x1

Our Price:	Login to see price
Discontinued	- Not orderable

Accessories

: Intel Core i5-13500 14-Core LGA1700 w/24MB cache CPU (BOX)

: Intel Core i7-13700 16-Core LGA1700 w/30MB cache CPU (BOX)

: Kingston Fury Beast 32GB Kit DDR5-5200 CL40 288-pin DIMM

Much like the Tomahawk, the Mortar is popular among gamers and creators looking for value-oriented Micro-ATX motherboards. The MAG B760M MORTAR WIFI brings back everything you love about the MORTAR and improves on it in spades!

An extended heatsink design is tasked with keeping the 12+1+1 Phase DRPS with 75A DrMOS cool even while delivering all the power your Intel CPU might need. Like other MSI gaming B760 motherboards, you’ll find a Lightning Gen 5 PCIe slot (PCIe 5.0 x16) – ready for current and next-gen graphics without holding them back.

Description

Specifications

CPU Support

LGA1700 socket for 14th, 13th & 12th Generation Intel Core Processors

Number of Processor (s)

Single (Not Included)

Chipset

Intel B760 chipset

System Bios

UEFI AMI BIOS

Video card slot

PCIe 5.0 x16

Number of Memory Slots

Type of Memory Supported

DDR5-7000(O.C.)+ / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) /6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200 / 5000 / 4800 Non-ECC, Un-buffered Memory

Maximum RAM

128GB

Back Panel I/O

1 x USB 3.2 Gen2x2 Type-C port
3 x USB 3.2 Gen2 Type-A ports
4 x USB 2.0 ports
1 x DisplayPort
1 x HDMI
1 x RJ45 LAN
1 x Audio I/O
2 x Wi-Fi connectors

Number of PCI/PCI-Express Slots

1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (max x4)
1 x PCIe 3.0 x1

Integrated SATA/SAS

4 x SATA 6Gb/s

# of M.2 Ports

1 x M.2 socket, with M key, type 2242/2260/2280 supports PCIe 4.0 x4
1 x M.2 socket, with M key, type 2242/2260/2280/22110 supports PCIe 4.0 x4 & SATA

Integrated SATA/SAS RAID

RAID 0, 1, 5, 10

Integrated Audio

Realtek ALC897 7.1 CH HD Audio Codec

Integrated Video

Integrated Intel Graphics from processor

Integrated LAN

Realtek RTL8125BG 2.5Gb Ethernet

Integrated Wifi

Intel Wi-Fi 6E & Bluetooth v5.3

USB

1 x USB 3.2 Gen2x2 Type-C port on Back Panel I/O
1 x USB 3.2 Gen2 Type-C port via header
3 x USB 3.2 Gen2 Type-A ports on Back Panel I/O
2 x USB 3.2 Gen1 Type-A ports via header
4 x USB 2.0 ports on Back Panel I/O
4 x USB 2.0 ports via headers

Form Factor

Micro ATX

Dimensions

9.6" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 3 years
Warranty Provider: MSI
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
2. After 30-day from invoice date: Contact MSI at (626) 913-0828 Or visit MSI customer service online.
Technical Support: MSI (626) 913-0828 or visit MSI technical support online.
