SKU: 800-14032E
  • Max 128GB / 4x DDR4 DIMM / Up to 4866+(O.C.)
  • 6x SATA 6GB/s, 2x M.2 / RAID 0, 1, 10
  • Up to 2x USB 3.2 G2 (1x USB-C), 5x USB 3.2 G1 (1x USB-C), 6x USB 2.0
  • 2x PCIe x16, 2x PCIe x1
Our Price: Login to see price
Availability: Usually ships within 1-2 business days


Specifications

CPU Support
  • AMD AM4 3rd Gen Ryzen processor
  • Not Compatible with AMD Ryzen 5 3400 G and Ryzen 3200 G
Number of Processor (s)
Single (Not Included)
Chipset
AMD B550
System Bios
AMI UEFI BIOS
Video card slot
PCIe 4.0/3.0 x16
Number of Memory Slots
4
Type of Memory Supported
DDR4 4866+(O.C.) / 4800(O.C.) / 4733(O.C.) / 4600(O.C.) / 4533(O.C.) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3333(O.C.) / 3200 / 3000/ 2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory
Maximum RAM
128GB

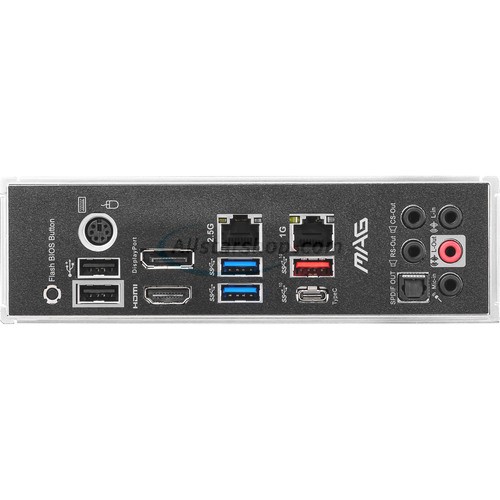

Back Panel I/O
  • 1 x PS/2 keyboard/ mouse
  • 1 x USB 3.2 Gen2 Type-A port
  • 1 x USB 3.2 Gen2 Type-C port
  • 2 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0 Type-A ports
  • 1 x DisplayPort
  • 1 x HDMI
  • 2 x RJ45 LAN
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 3.0 x16 (Max x4)
  • 2 x PCIe 3.0 x1
Integrated SATA/SAS
6 x SATA 6Gb/s
# of M.2 Ports
  • 1 x M.2 socket 3, with M Key, Type 2242/2260/2280/22110 supports SATA & PCIE 4.0 x4 storage devices
  • 1 x M.2 socket 3, with M Key, Type 2242/2260/2280 supports PCIE 3.0 x4 storage devices
Integrated SATA/SAS RAID
RAID 0, 1, 10
Integrated Audio
Realtek ALC1200 7.1 CH HD Audio Codec
Integrated Video
Integrated Graphics from processor (Actual support may vary by CPU)
Integrated LAN
  • Realtek RTL8125B 2.5 Gigabit LAN
  • Realtek RTL8111H Gigabit LAN
USB
  • 1 x USB 3.2 Gen2 Type-A port on Back Panel I/O
  • 1 x USB 3.2 Gen2 Type-C port on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports on Back Panel I/O
  • 2 x USB 3.2 Gen1 Type-A ports via header
  • 1 x USB 3.2 Gen1 Type-C port via header
  • 2 x USB 2.0 Type-A ports on Back Panel I/O
  • 4 x USB 2.0 Type-A ports via headers
PS/2 Ports
1 x PS/2 keyboard/ mouse
Form Factor
ATX
Dimensions
12" x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

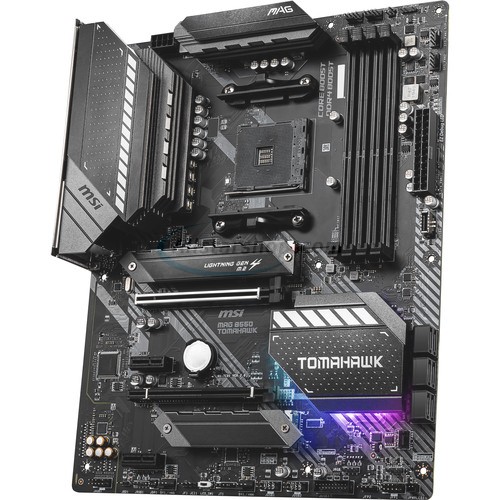

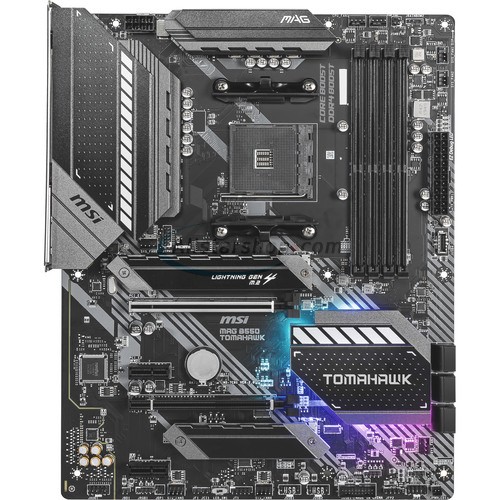

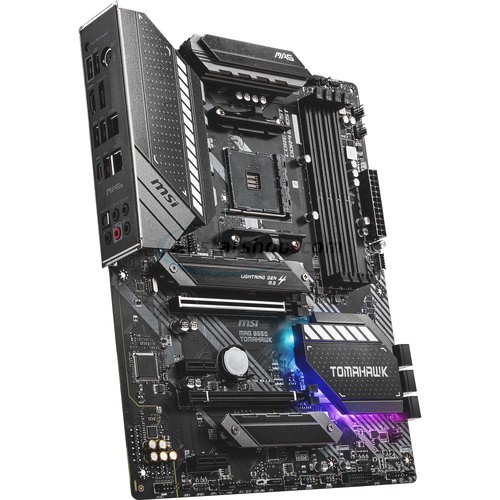

  • MSI MAG B550 TOMAHAWK motherboard
  • User manual
  • Quick installation guide
  • Driver DVD
  • 2 x SATA cables
  • 1 x M.2 screws pack
