SKU: 800-14134
  • Integrated ATI HD 4250 - DVI-D / HDMI / VGA
  • Max 16GB / 4 x Dimm DDR3 1600(OC)/1333/1066/800
  • 6 x SATA 6Gb/s / RAID 0, 1, 10, 5 / 1 x IDE / 0 x FDD
  • 2 x USB 3.0, 14 x USB 2.0
  • 1 x PCI-E 2.0 X16, 2 x PCI-E X1, 1 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    Socket AM3:
    • AMD Phenom II
    • AMD Athlon II
    • AMD Sempron 100
Number of Processor (s)
Single (Not Included)
Chipset
  • AMD 880G
  • AMD SB850
Front Side Bus (FSB)
5200 MT/s
Video card slot
PCI-Express 2.0 X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 DDR3 1600(OC)/1333/1066/800 memory
Maximum RAM
16GB

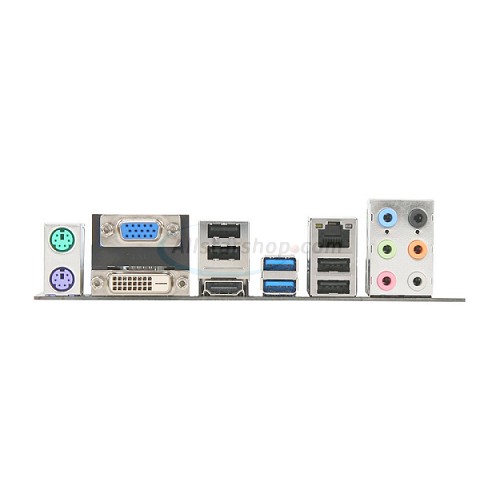

Back Panel I/O
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x VGA
  • 4 x USB 2.0 ports
  • 2 x USB 3.0 ports
  • 1 x 1 x RJ45 LAN jack
  • 1 x 6 in 1 Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCI-Express X16
  • 2 x PCI-Express X4
  • 1 x PCI
Number of ISA Slots (16 Bit)
No
On-Board EIDE/Floppy
  • 1 x Ultra DMA 133/100/66 channels
On-Board IDE RAID
No
Integrated SATA/SAS
    AMD SB850:
    • 6 x SATA 6Gb/s
Integrated SATA/SAS RAID
    AMD SB850:
    • RAID 0, 1, 10 and 5
Integrated Audio
ALC889/892 8-Channel High Definition Audio CODEC
Integrated Video
ATI Radeon HD 4250
Integrated LAN
Realtek 8111DL Gigabit Ethernet controller
Integrated SCSI
No
USB
    Up to 14 USB ports:
    • 2 x USB 3.0 ports on Back Panel I/O
    • 4 x USB 2.0 ports on Back Panel I/O
    • 8 x USB 2.0 ports via headers
IEEE 1394
No
Form Factor
microATX
Additional information
Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical memory is installed, the actual memory available for the operating system will be less than 4GB; Windows 64-bit operating system doesn't have such limitation.

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
