SKU: 800-14119H
  • Max 16GB / 4 x Dimm DDR3 2000/1600/1333
  • 8 x SATA, 1 x eSATA / RAID 0, 1, 5, 10 / 1 x IDE / 1 x FDD
  • Up to 11 x USB 2.0, 2 x IEEE 1394a
  • 4 x PCI-E X16, 1 x PCI-E X1, 2 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    Socket AM3:
    • AMD Phenom II X4
    • AMD Phenom II X3
Number of Processor (s)
Single (Not Included)
Chipset
  • AMD 790FX
  • AMD SB750
Video card slot
PCI-Express X16
Number of Memory Slots
4
Type of Memory Supported
240-pin DDR3 2000/1600/1333 memory
Maximum RAM
8GB

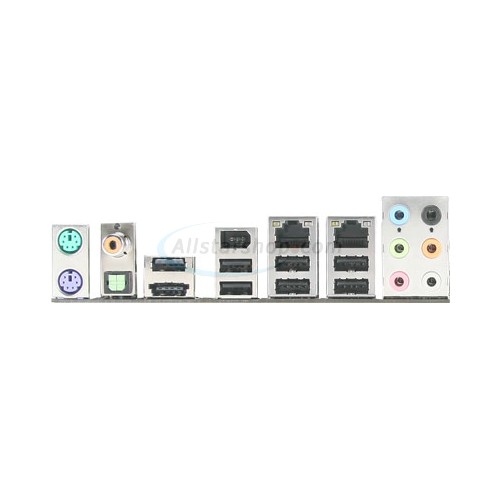

Back Panel I/O
  • 1 x PS/2 Mouse
  • 1 x PS/2 Keyboard
  • 1 x eSATA ports
  • 7 x USB ports
  • 2 x RJ45 LAN ports
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 4 x PCI-Express X16:
    • Dual Graphic: 2 x PCI-E X16
    • Quad Graphic: 4 x PCI-E X8
    • Supports ATi Cross Fire
  • 1 x PCI-Express X1
  • 2 x PCI
Number of ISA Slots (16 Bit)
No
On-Board EIDE/Floppy
1 x Ultra DMA 133/100/66 channels
On-Board IDE RAID
No
Integrated SATA/SAS
    AMD SB750:
    • 6 x SATA 3Gb/s channels
    JMicron JMB322:
    • 2 x SATA 3Gb/s channels
    • 1 x eSATA 3Gb/s channels
Integrated SATA/SAS RAID
Supports RAID 0, 1, 10 and 5
Integrated Audio
Realtek ALC889 Audio Codec
Integrated Video
No
Integrated LAN
2 x Realtek RTL8111DL Gigabit Ethernet controller
Integrated SCSI
No
USB
    Up to 11 USB ports:
    • 7 x USB ports on Back Panel I/O
    • 4 x USB ports via headers
IEEE 1394
    Up to 2 x IEEE 1394 ports:
    • 1 x IEEE 1394 port on Back Panel I/O
    • 1 x IEEE 1394 port via header
Form Factor
ATX
Dimensions
12" x 9.75"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.
