SKU: 800-14128A
  • Integrated ATI Radeon HD 4200 - DVI / HDMI / VGA
  • Max 8GB / 2 x Dimm DDR2 1066/800/667
  • 6 x SATA / RAID 0, 1, 10, 5, JBOD / 1 x IDE / 0 x FDD
  • Up to 8 x USB 2.0
  • 1 x PCI-E 2.0 X16, 1 x PCI-E X1, 2 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    Socket AM2+ / 3:
    • AMD Phenom II
    • AMD Phenom
    • AMD Athlon II
    • AMD Athlon
    • AMD Sempron
Number of Processor (s)
Single (Not Included)
Chipset
  • AMD 785G
  • AMD SB710
Video card slot
PCI-Express X16
Number of Memory Slots
2
Type of Memory Supported
  • 240-pin DDR2 1066/800/667 memory
Maximum RAM
8GB

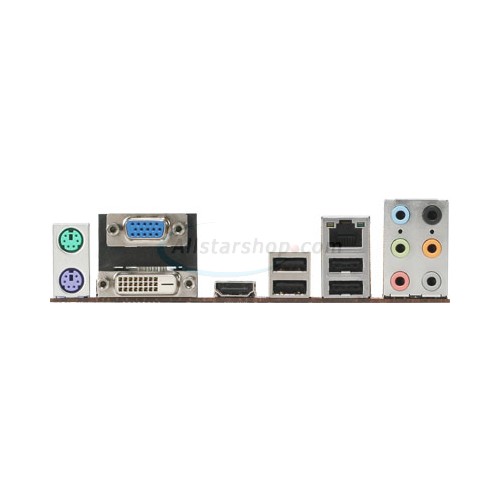

Back Panel I/O
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x DVI-D
  • 1 x 15-pin VGA
  • 1 x HDMI
  • 1 x RJ45 LAN port
  • 6 x USB 2.0 ports
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCI-Express 2.0 X16
  • 1 x PCI-E X1
  • 2 x PCI
Number of ISA Slots (16 Bit)
No
On-Board EIDE/Floppy
1 x UltraDMA 133/100/66 channel
On-Board IDE RAID
No
Integrated SATA/SAS
    AMD SB710:
    • 6 x SATA 3Gb/s
    Integrated SATA/SAS RAID
    Supports RAID 0, 1, 0+1 and JBOD
    Integrated Audio
    Realtek 8-Channel High Definition Audio CODEC
    Integrated Video
    Ati Radeon HD 4200
    Integrated LAN
    Realtek 8111C Gigabit LAN controller
    Integrated SCSI
    No
    USB
      Up to 8 USB ports:
      • 4 x USB ports on Back Panel I/O
      • 4 x USB ports via headers
    IEEE 1394
    No
    Form Factor
    microATX

    The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

    Warranty and Service

    Package Contents

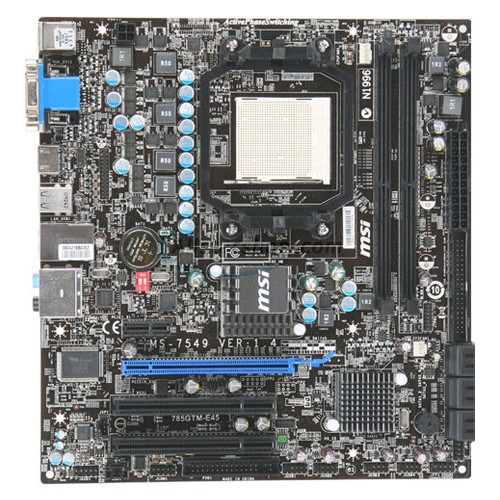

    • 1 x MSI 785GTM-E45 motherboard
    • 1 x UltraDMA 133/100/66 cable

    • 2 x SATA cable(s)

    • 1 x I/O Shield
    • User's manual
