SKU: 800-14128
  • Integrated ATI Radeon HD 4200 - DVI / HDMI / VGA
  • Max 16GB / 4 x Dimm DDR3 1333/1066/800
  • 5 x SATA, 1 x eSATA / RAID 0, 1, 10, 5, JBOD / 1 x IDE / 0 x FDD
  • Up to 12 x USB 2.0, 2 x IEEE 1394a
  • 1 x PCI-E 2.0 X16, 1 x PCI-E X1, 2 x PCI
Our Price: Login to see price
Discontinued - Not orderable


Specifications

CPU Support
    Socket AM3:
    • AM3 Phenom II
    • AM3 Athlon II
    • AM3 Sempron 100 Series
Number of Processor (s)
Single (Not Included)
Chipset
  • AMD 785G
  • AMD SB710
Video card slot
PCI-Express X16
Number of Memory Slots
4
Type of Memory Supported
  • 240-pin DDR3 1333/1066/800 memory
Maximum RAM
16GB

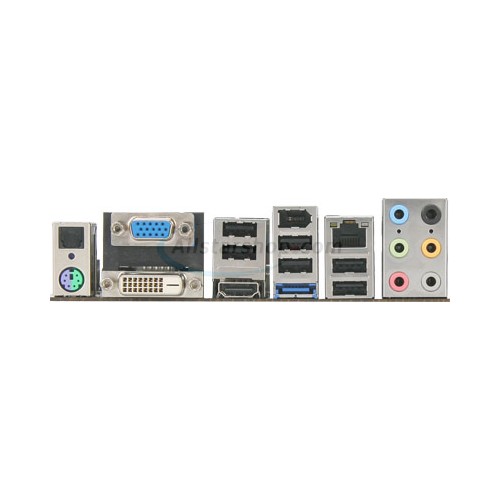

Back Panel I/O
  • 1 x PS/2 Keyboard/Mouse
  • 1 x DVI-D
  • 1 x 15-pin VGA
  • 1 x HDMI
  • 1 x RJ45 LAN port
  • 1 x eSATA port
  • 6 x USB 2.0 ports
  • 1 x IEEE 1394a port
  • 1 x Audio I/O
Number of PCI/PCI-Express Slots
  • 1 x PCI-Express 2.0 X16
  • 1 x PCI-E X1
  • 2 x PCI
Number of ISA Slots (16 Bit)
No
On-Board EIDE/Floppy
1 x UltraDMA 133/100/66 channel
On-Board IDE RAID
No
Integrated SATA/SAS
    AMD SB710:
    • 5 x SATA 3Gb/s
    • 1 x eSATA 3Gb/s
Integrated SATA/SAS RAID
Supports RAID 0, 1, 0+1 and JBOD
Integrated Audio
Realtek 8-Channel High Definition Audio CODEC
Integrated Video
Ati Radeon HD 4200
Integrated LAN
Realtek Gigabit LAN controller
Integrated SCSI
No
USB
    Up to 12 USB ports:
    • 6 x USB ports on Back Panel I/O
    • 6 x USB ports via headers
IEEE 1394
    Up to 2 x IEEE 1394 ports:
    • 1 x IEEE 1394 ports on Back Panel I/O
    • 1 x IEEE 1394 port via header
Form Factor
microATX
Dimensions
9.6 x 9.6"

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Package Contents

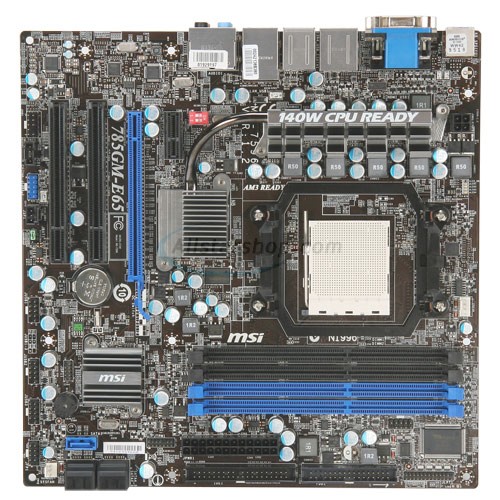

  • 1 x MSI 785GM-E65 motherboard
  • 1 x UltraDMA 133/100/66 cable

  • 2 x SATA cable(s)

  • 1 x I/O Shield
  • User's manual
