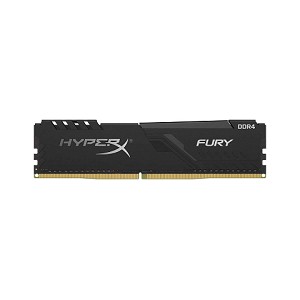

HyperX HX434C16FB3/16 is a 2G x 64-bit (16GB) DDR4-3466 CL16 SDRAM 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Each module has been tested to run at DDR4-3466 at a low latency timing of 16-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
JEDEC/XMP TIMING PARAMETERS
- JEDEC/PnP:DDR4-2400 CL17-17-17@1.2V
- XMP Profile #1: DDR4-3466 CL16-18-18@1.35V
- XMP Profile #2: DDR4-3000 CL15-17-17@1.35V
